Special Tools: Notes

Fig 1: Identifying Special Tools Used For Door Trim Panel Removal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

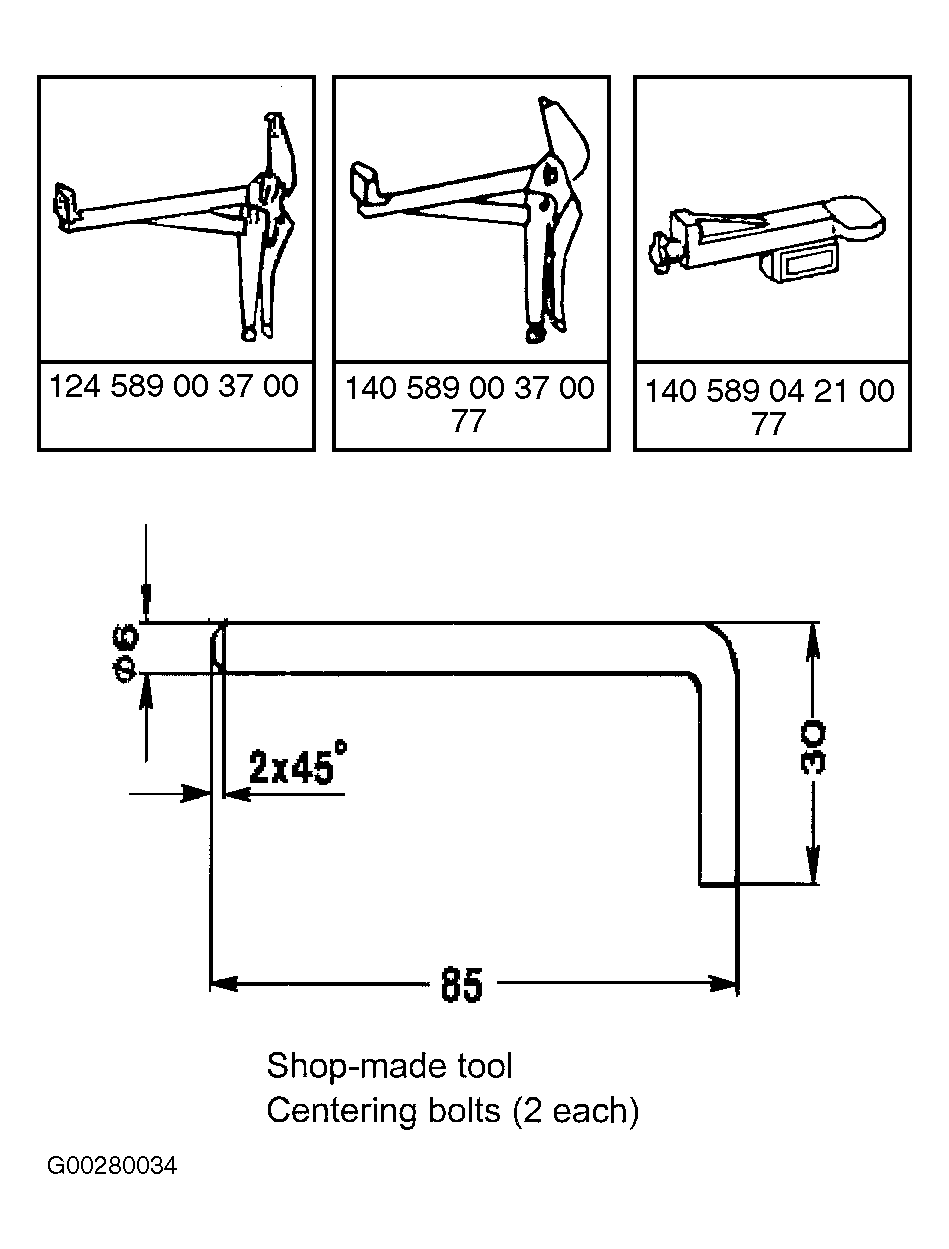

Fig 2: Identifying Special Tools Used For Tilting/Sliding Roof Panel (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

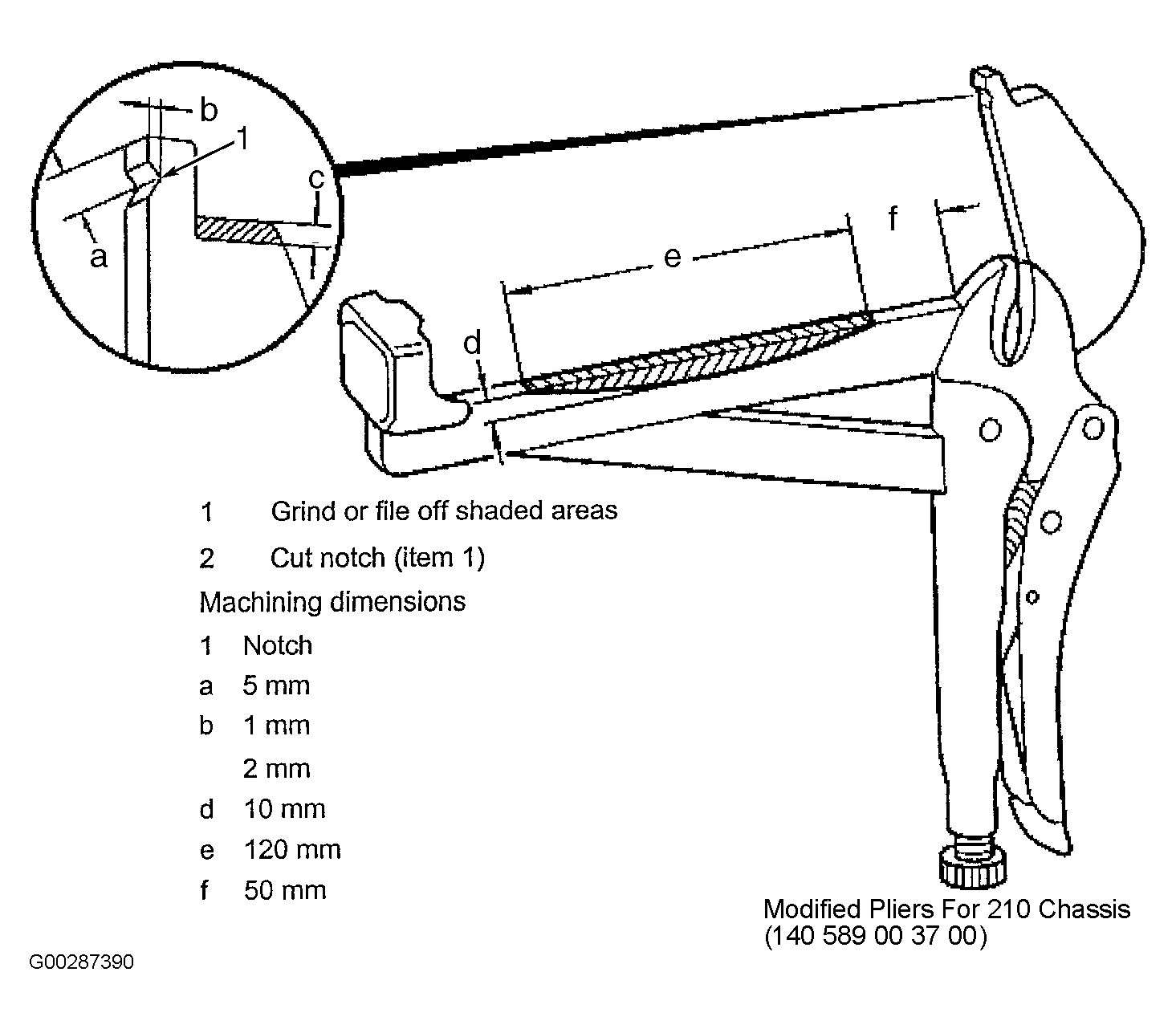

Fig 3: Identifying Special Tools Used For Tilting/Sliding Roof Panel Modified Pliers (140-589-00-37-00) (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

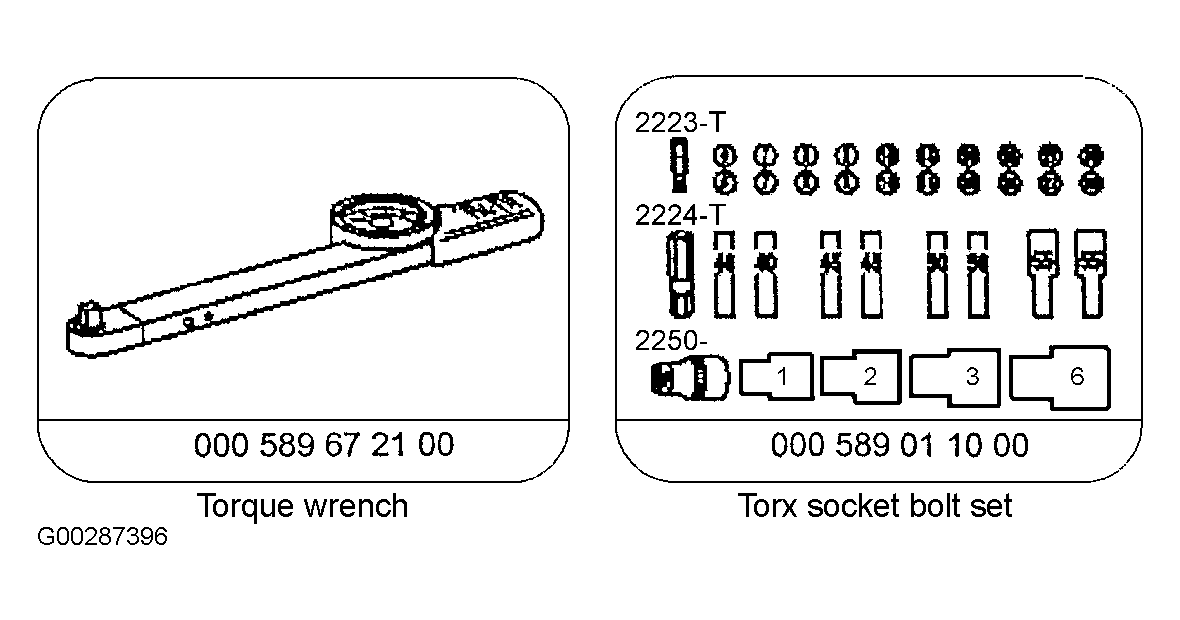

Fig 4: Identifying Torque Wrench & Torx Socket Bolt Set

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
