Electrical System Tests Central Locking (Section 23)

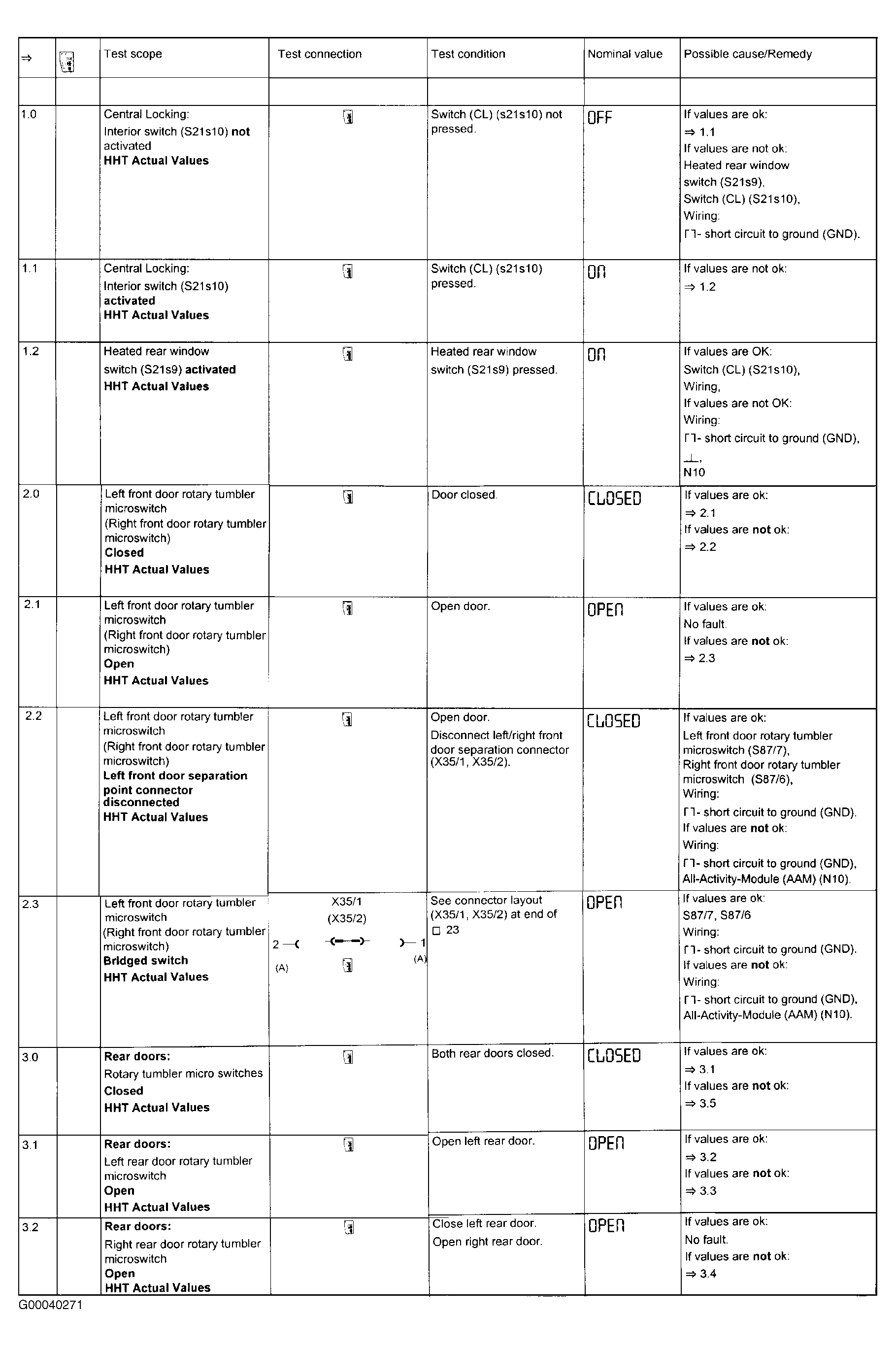

Fig 1: Electrical System Tests - Steps 1.0-3.2 (1 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

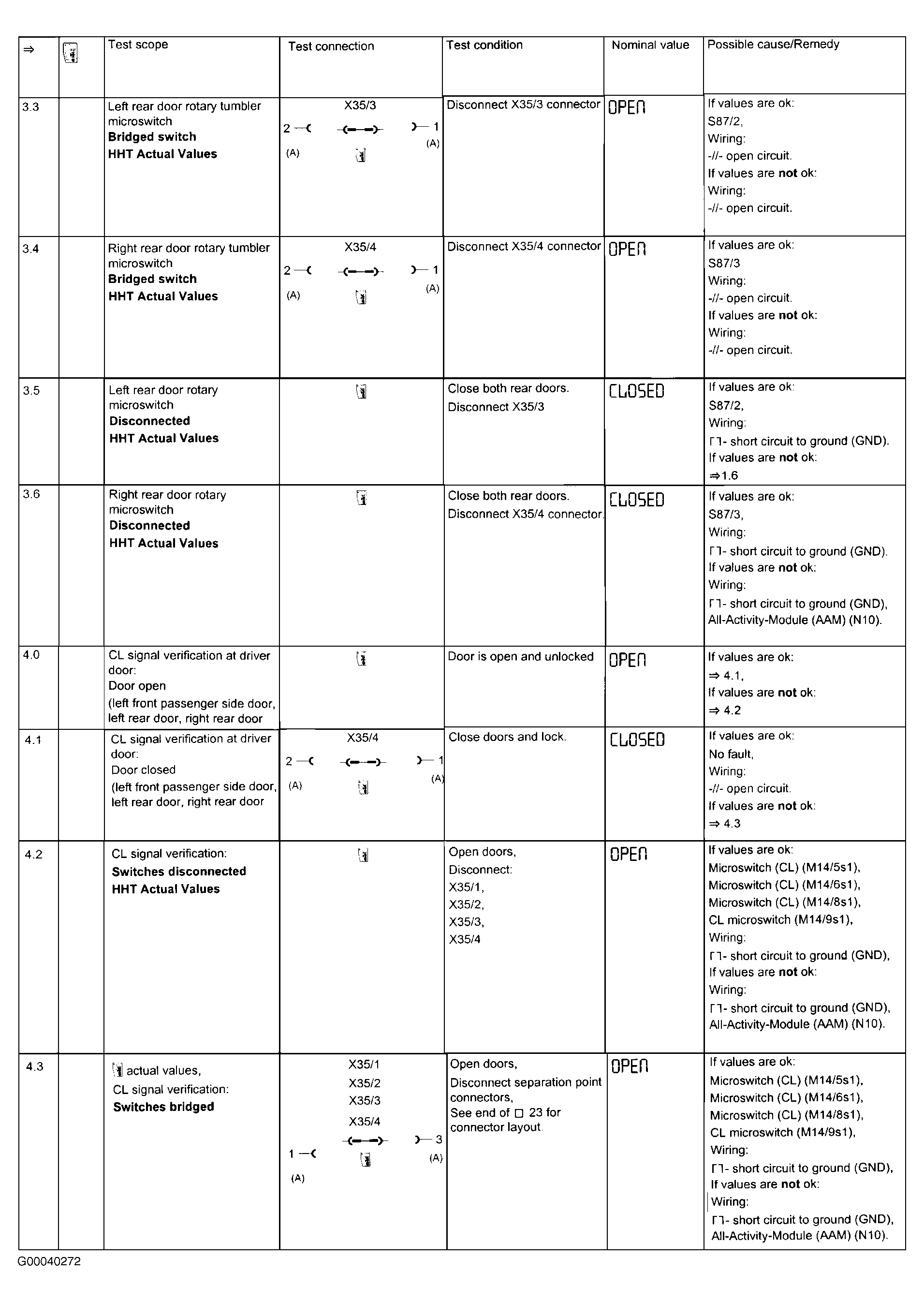

Fig 2: Electrical System Tests - Steps 3.3-4.3 (2 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

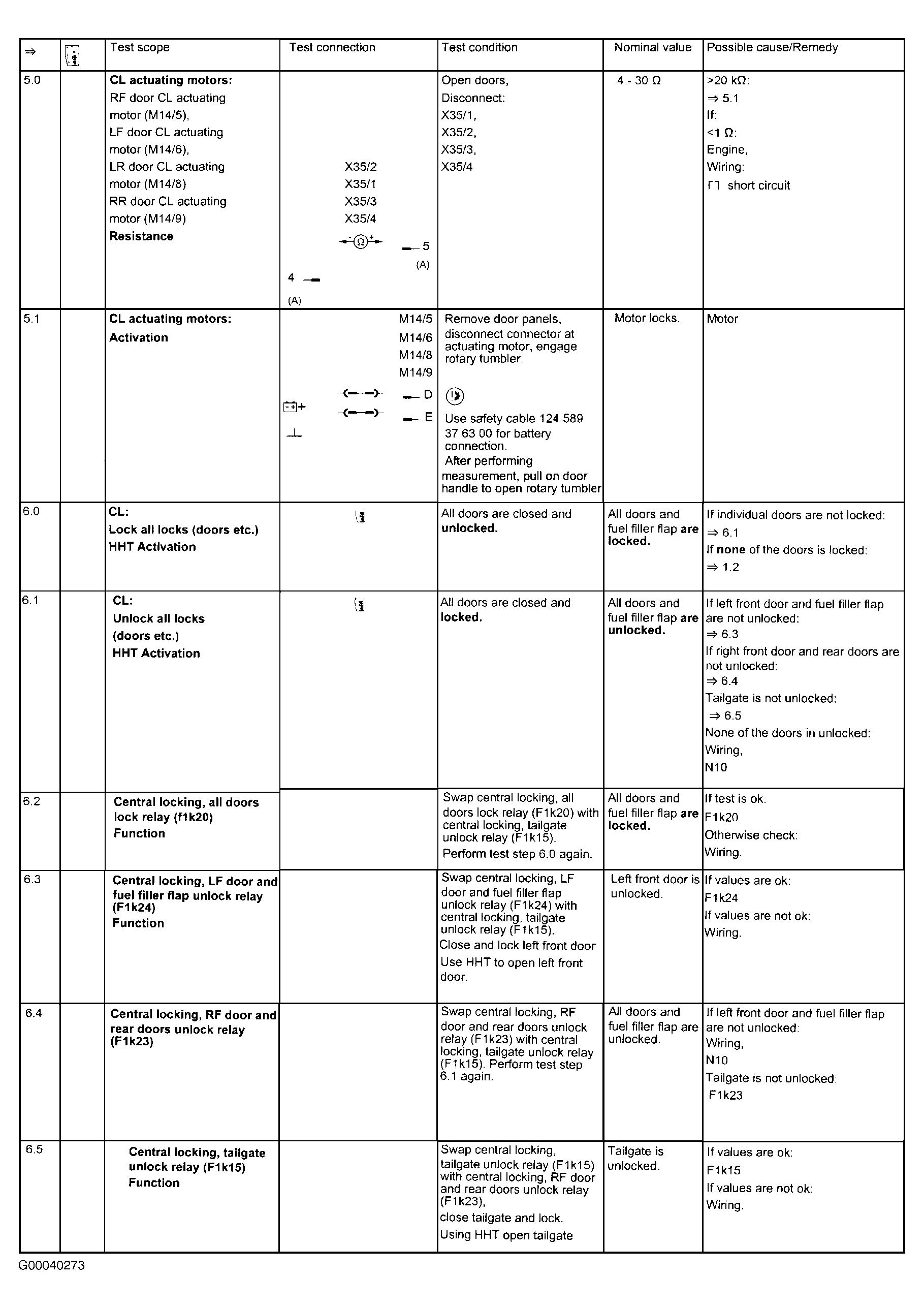

Fig 3: Electrical System Tests - Steps 5-6.5 (3 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

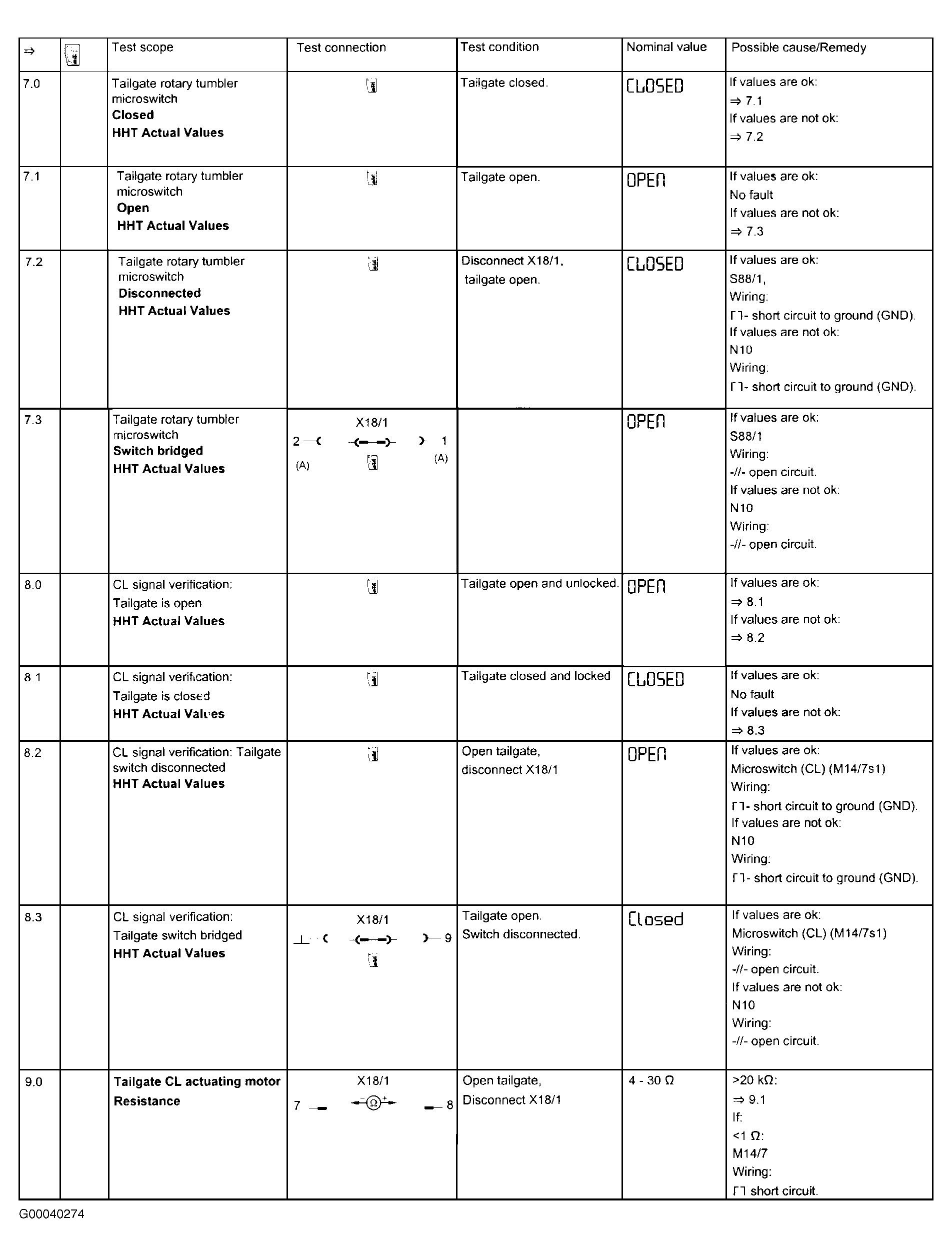

Fig 4: Electrical System Tests - Steps 7-9 (4 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Electrical System Tests - Steps 9.1-10 (5 Of 5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
