Section 2 (Starter): Overhaul

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2000 Mercedes-Benz SLK230, 2000 Mercedes-Benz S500, 2000 Mercedes-Benz S430, 2000 Mercedes-Benz ML430, and 2000 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Manufacturer does not recommend overhaul of starter. Exploded view of starter is provided for component identification and location. See Fig 1 .

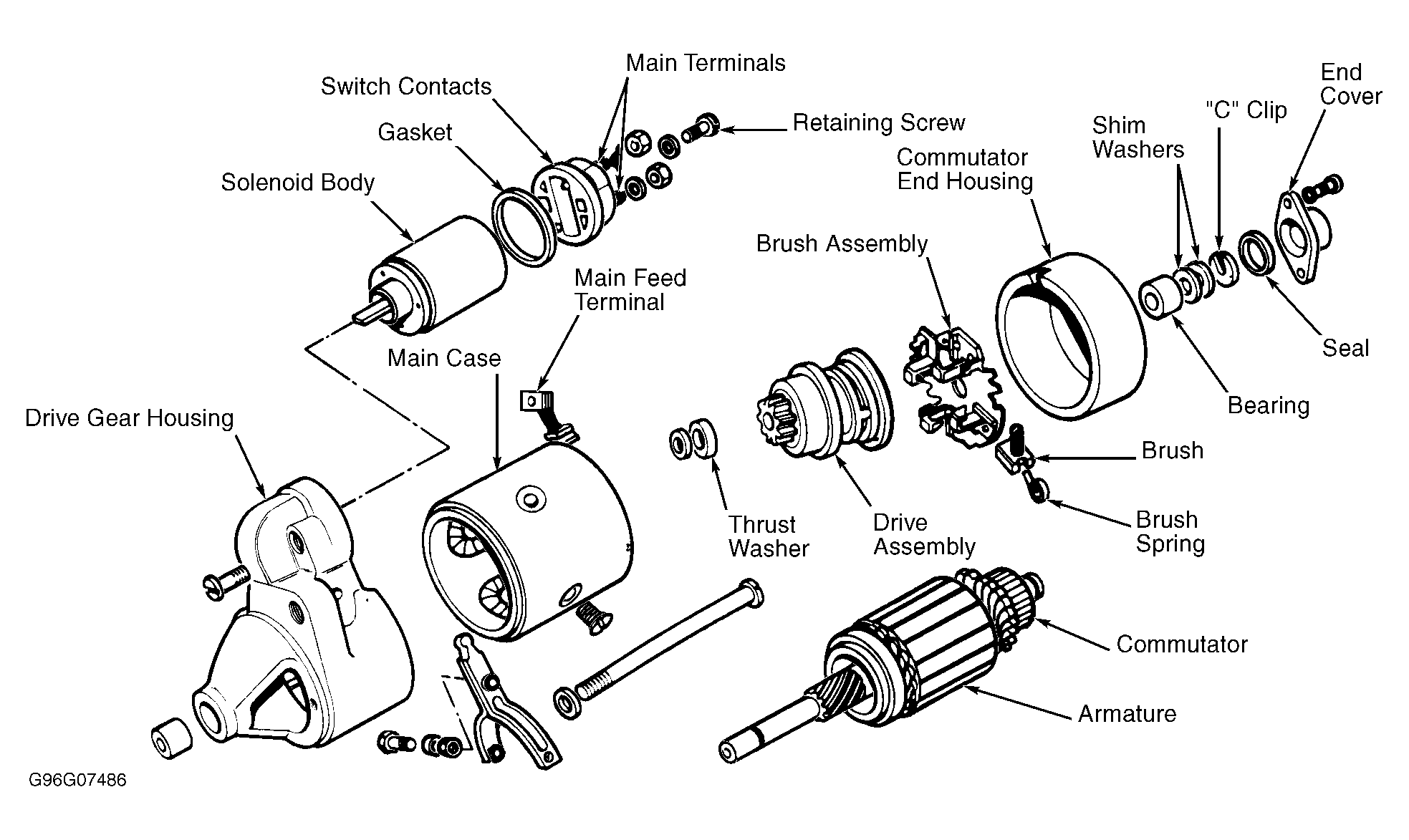

Fig 1: Exploded View Of Typical Bosch Starter

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
