Repair and Diagnosis (Single Page)
›
Brakes
›
Traction Control
›
Anti-Lock/Traction Control - TEVES
›
System Tests
›
Connector Identification
Connector Identification

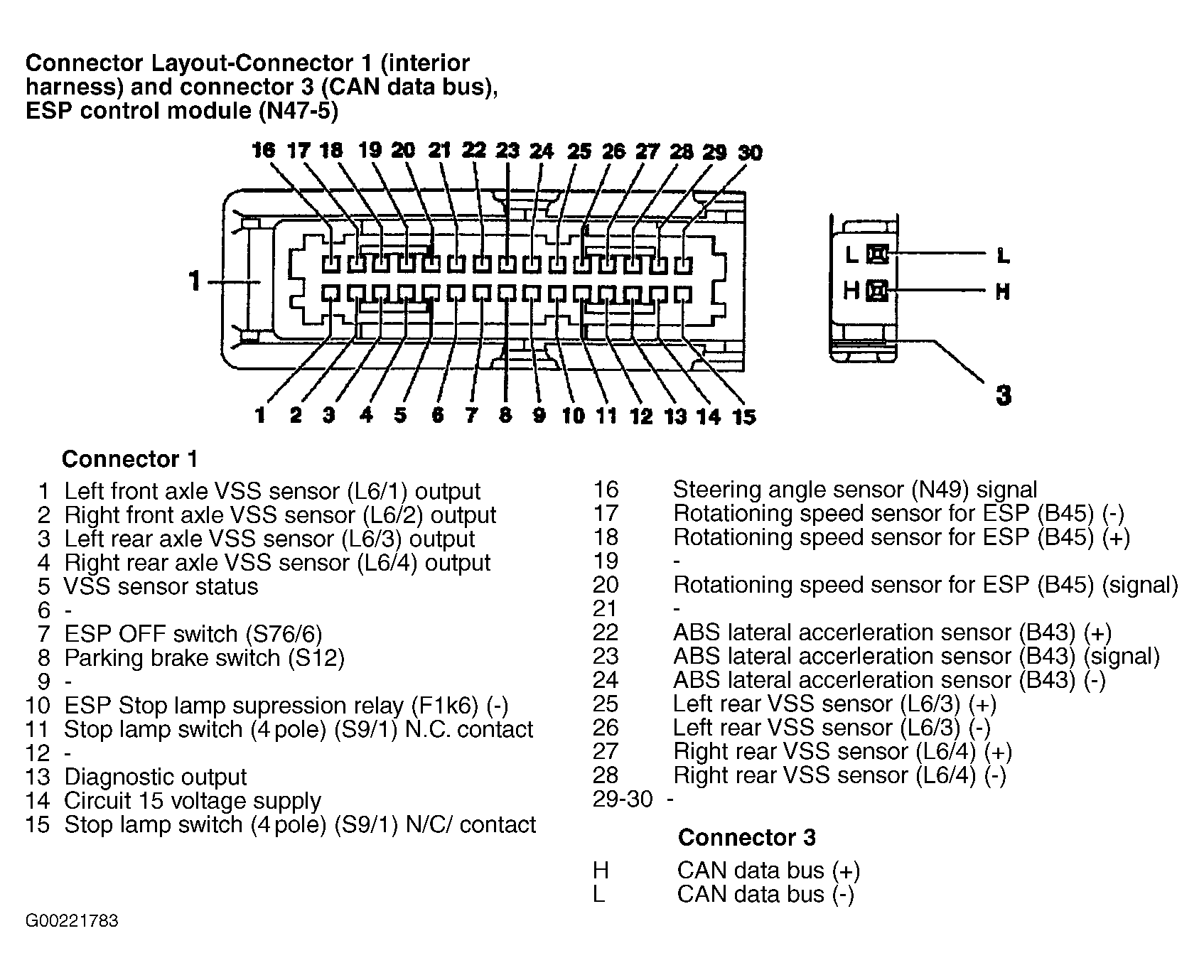

Fig 1: Connector Identification - Connector 1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

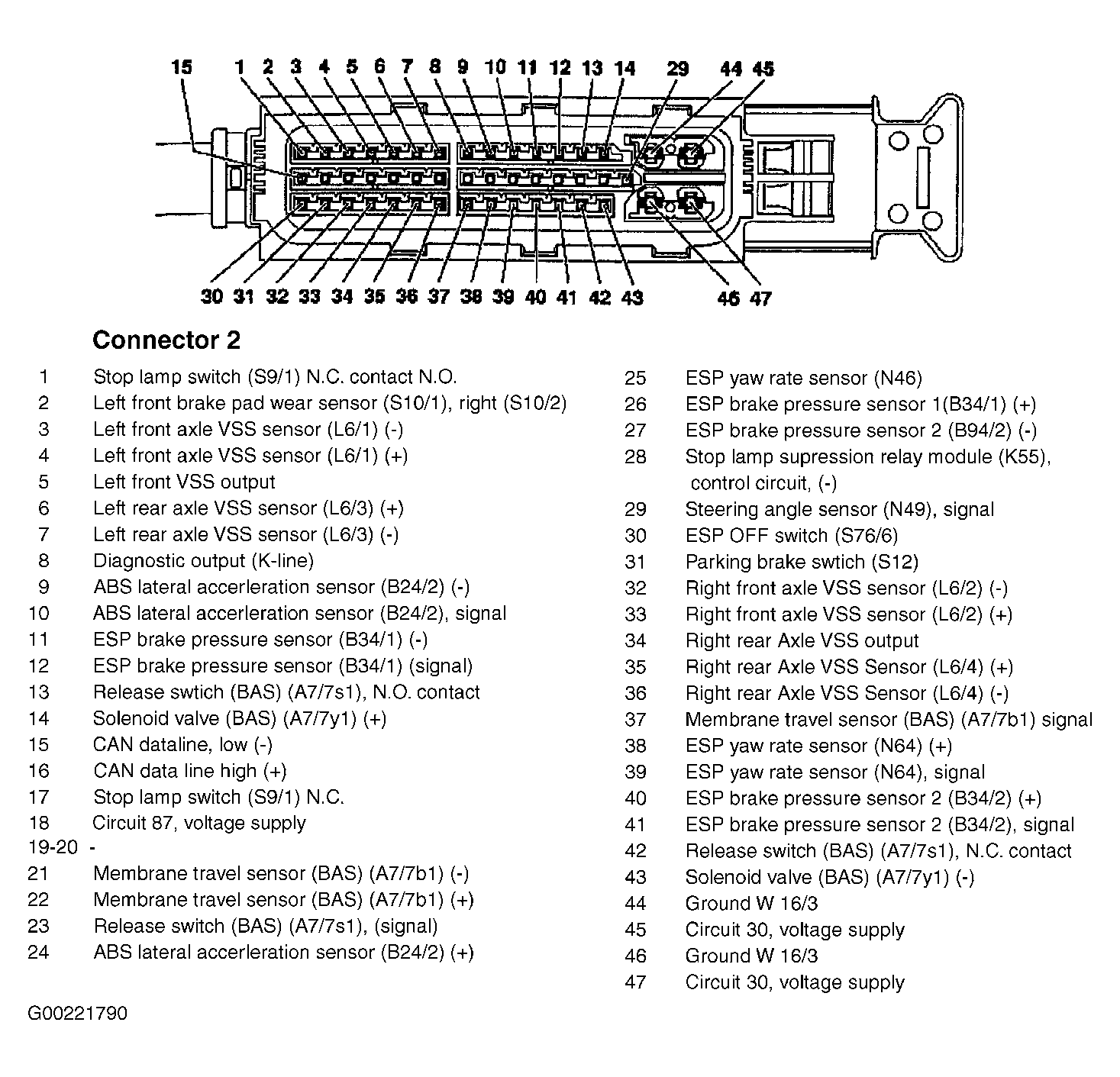

Fig 2: Connector Identification - Connector 2
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
