Electronic Accelerator Test (Steps 4.0-6.0)
Electronic Accelerator Test (Steps 4.0-6.0)

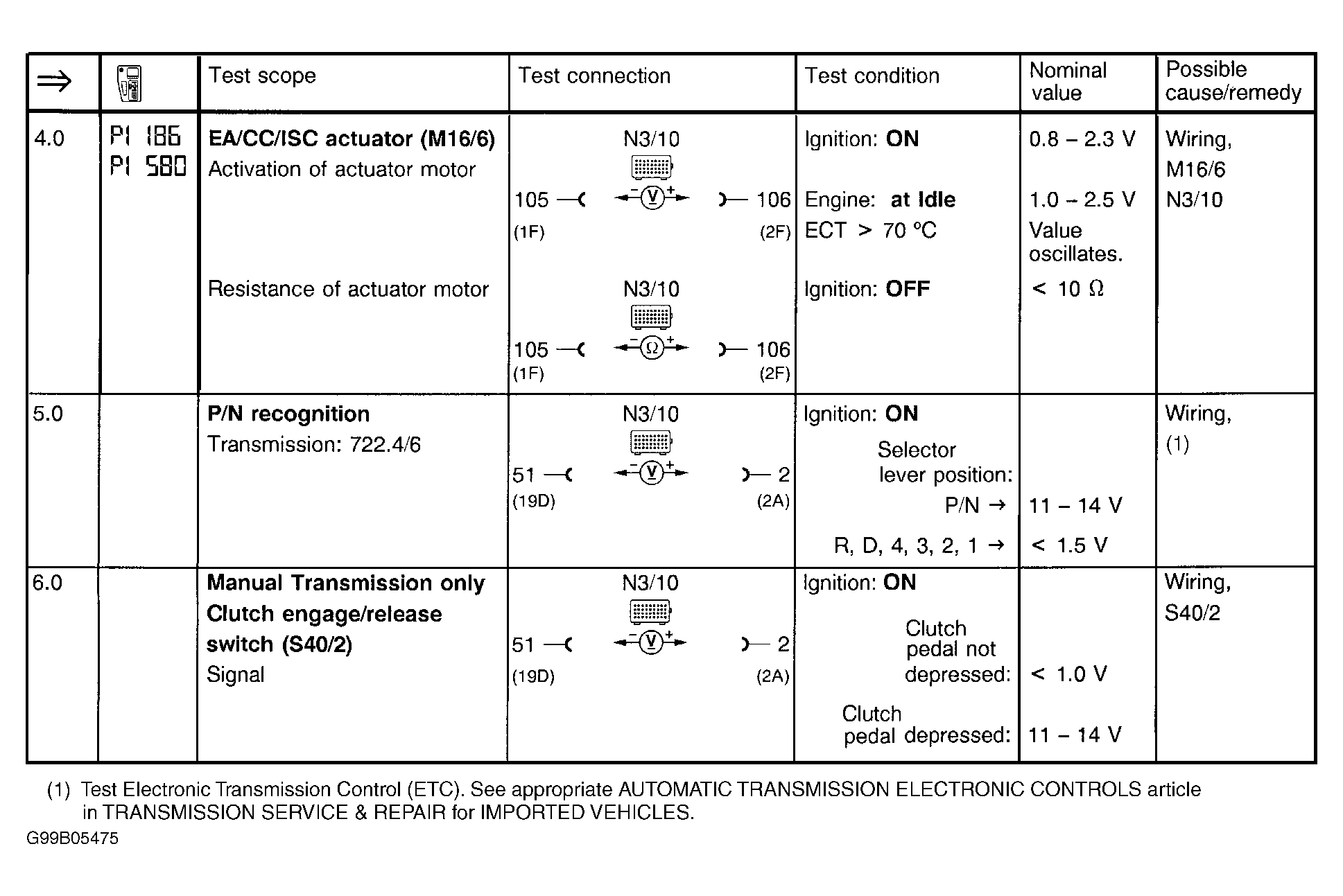

Fig 1: Electronic Accelerator Test (Steps 4.0-6.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
