Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
Fuel Injection System Tests
›
Fuel Injection System Test (Steps 30.0 & 30.1)
Fuel Injection System Test (Steps 30.0 & 30.1)

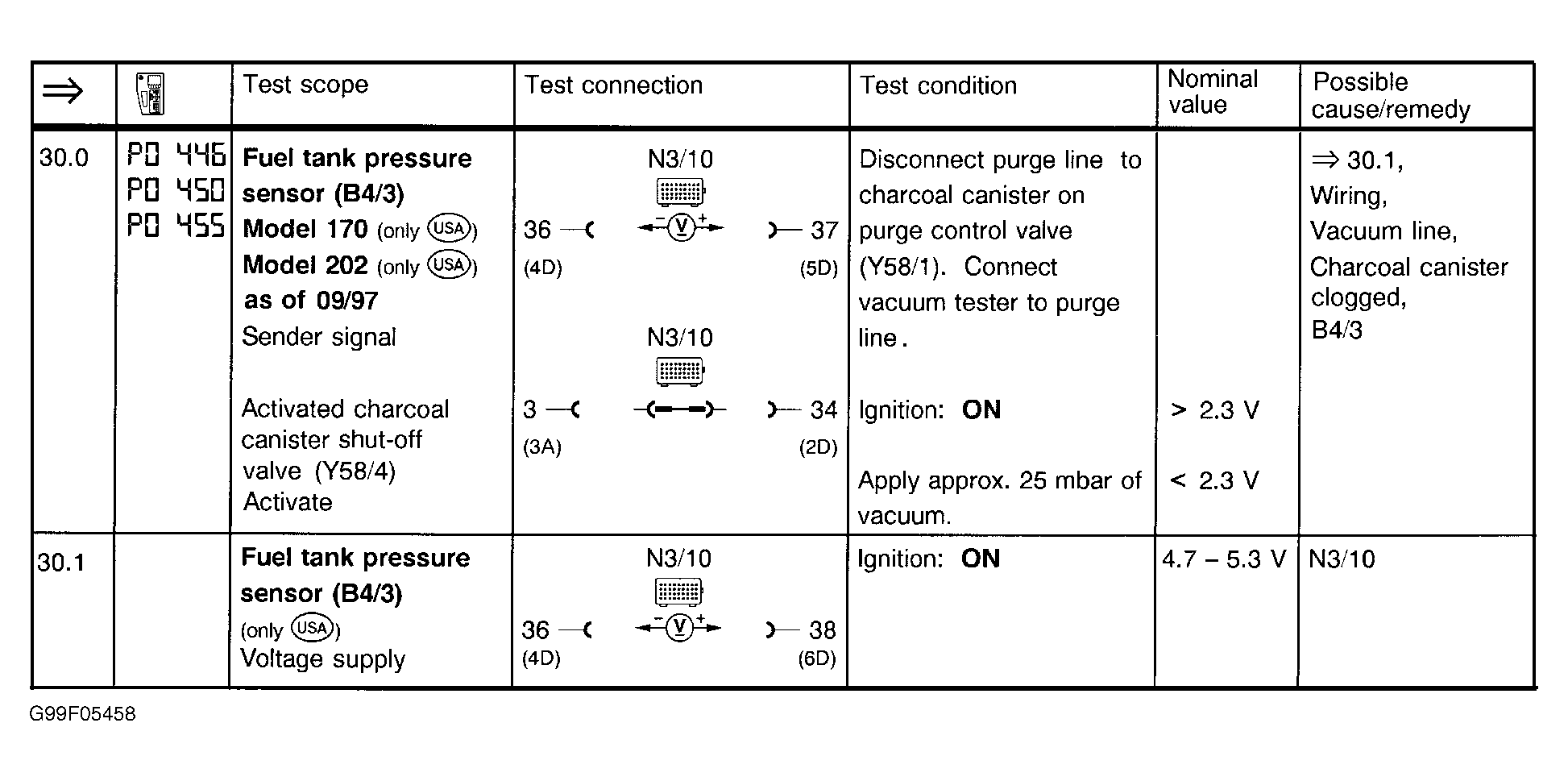

Fig 1: Fuel Injection System Test (Steps 30.0 & 30.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
