Ignition System Test (Steps 1.2-2.2)
Ignition System Test (Steps 1.2-2.2)

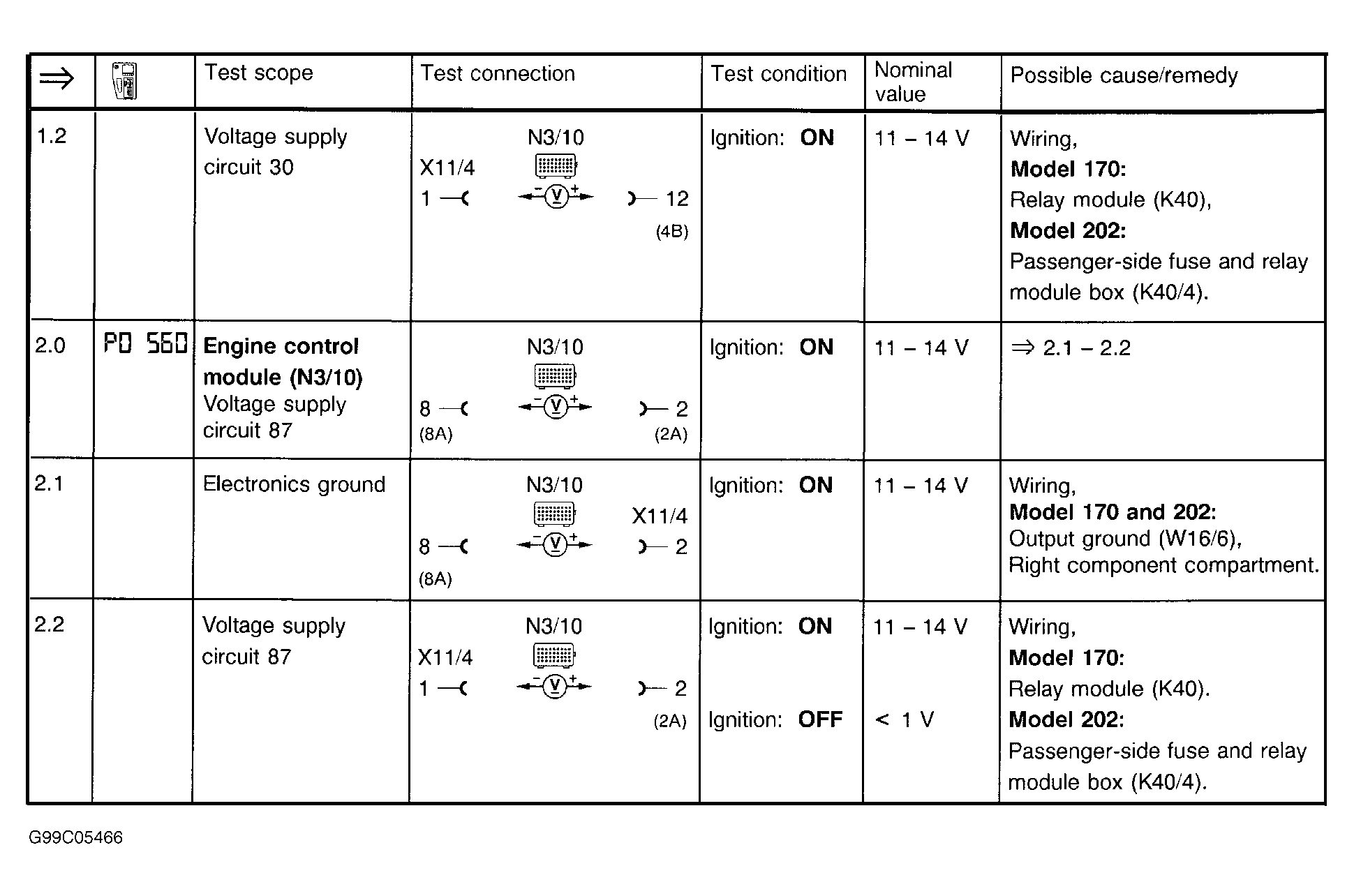

Fig 1: Ignition System Test (Steps 1.2-2.2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
