Ignition System Test (Steps 9.0 & 9.1)
Ignition System Test (Steps 9.0 & 9.1)

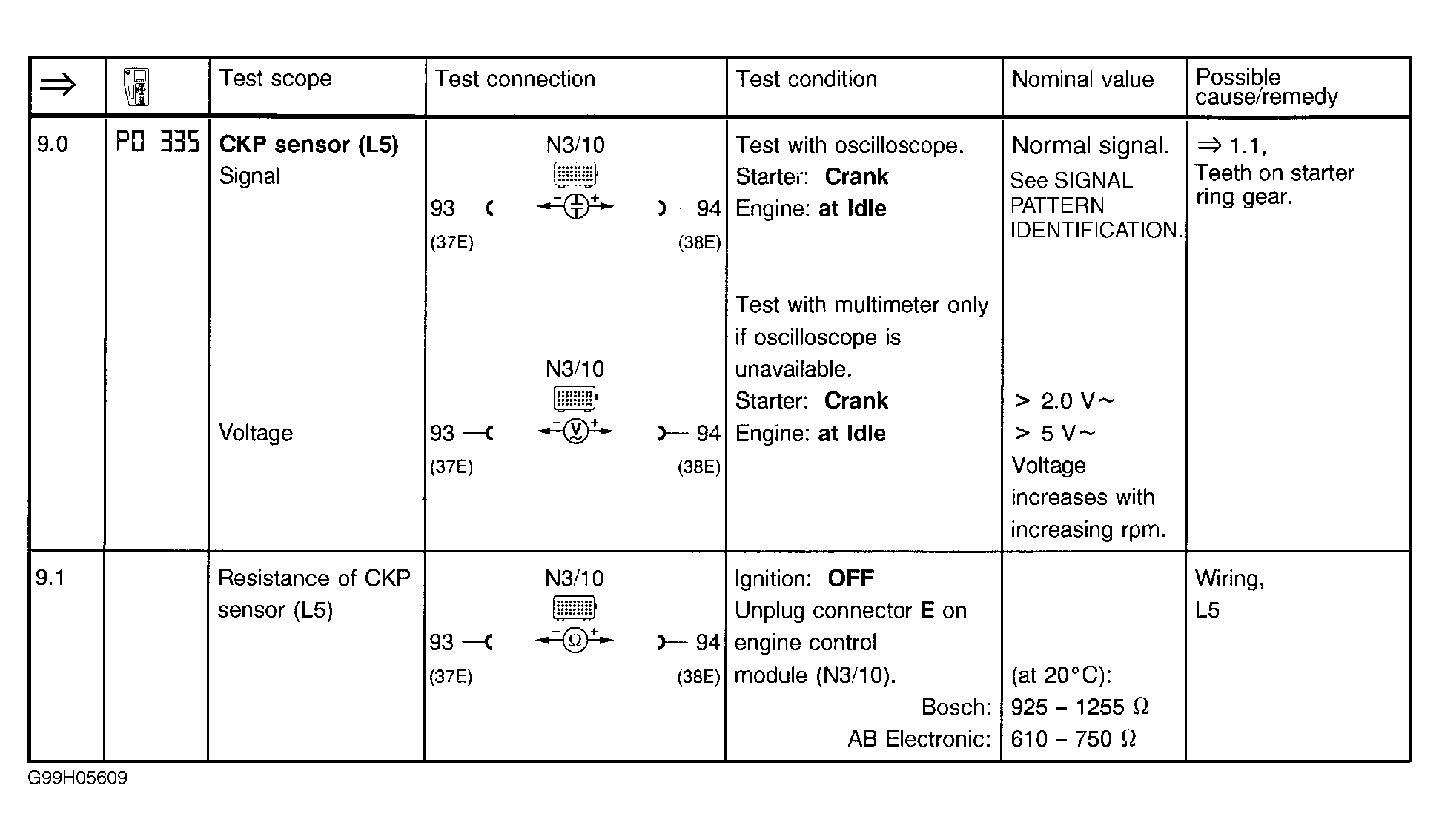

Fig 1: Ignition System Test (Steps 9.0 & 9.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
