Cruise control (CC) function - GF30.30-P-0001HB
ENGINE 605.960 #2 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 #2 in MODEL 210.010 as of 1.6.96, 210.210/610
ENGINE 606.912 #2 in MODEL 210.020 as of 1.6.96
ENGINE 606.962 #2 in MODEL 210.025/225
ENGINE 606.961 #2 in MODEL 140.135
ENGINE 605.962 #2 in MODEL 210.015 /215
Task
Maintaining the preselected speed constant irrespective of the engine load, and without operation of the accelerator pedal.
Operation

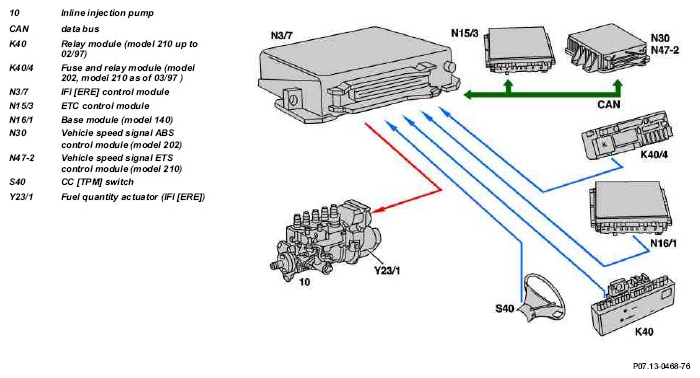

The cruise control function is integrated in the IFI control module (N3/7). It can be activated from > 40 km/h with the cruise control switch (S40). Actuation is performed directly by the IFI control module (N3/7) to the fuel quantity actuator (Y23/1).
The cruise control mode is switched off by:
- Operating the cruise control switch (S40)
- operating the service brakes
- moving selector lever into position "N"
NOTE:
On vehicles fitted with electronic ignition switch (EIS) the cruise control signals are read in by the EIS control module and transmitted via the CAN databus to the engine control module.
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module position / task / design / function | Model 210 to 02/97 | GF07.13-P-3101H | |
| IFI control module, location/task/function | GF07.12-P-3102HA | ||
| IFI quantity metering actuator, location/task/ function | GF07.12-P-3131H | ||
| Cruise control switch, location/task/function | GF07.13-P-3124H | ||
| ETC control module, location/task | Transmission 722.6 | GF27.19-P-4012G | |
| ABS control module, location/task/design/ function | Model 202 | GF42.30-P-4500A | |
| ETS control module position / task / design / function | Model 210 | GF42.35-P-4500A | |
| ASR control module location / task / design / function | Model 140 | GF42.40-P-4500A | |
| CAN databus function | GF54.00-P-0005HA | ||
| Variable speed limiter function | Engine 606.962 in model 210 Engine 605.960 in model 202 |
GF30.30-P-3001A |
