Fuel tank, location/design/function - GF47.10-P-3000B
MODEL 210, 220.026 /126
Shown on model 220

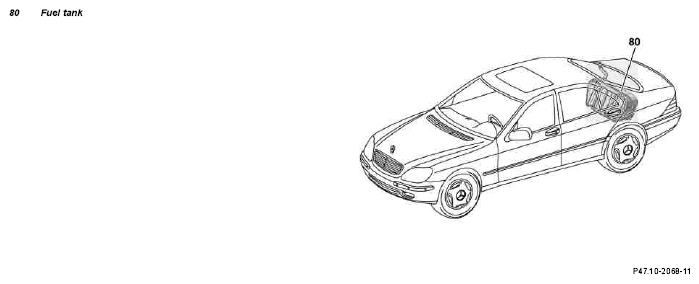

| Fuel tank position | The fuel tank (80) is located in the trunk above the rear axle. | ||
| Fuel tank design | GF47.10-P-3000-02B | ||
| Fuel tank function | The fuel flows from the return flow line (80/10) to the splash bowl (80/5) where it is drawn through the fuel strainer (80/11) and the fuel inlet hose (90/12) | ||
| Fuel tank ventilation system function | without ski bag (through-loading facility) | GF47.10-P-3005B | |
| Model 210.2 | GF47.10-P-3005BA | ||
| Model 210.0 with CODE 282 Ski bag (through-loading facility) | GF47.10-P-3005BB | ||
| Fuel gage sensor, location/task/design/function | GF47.10-P-3001B | ||
| Splash bowl, location/task/function | GF47.10-P-3101C | ||
| On-board refueling vapor recovery function | Gasoline engines |
GF47.10-P-3004A | |
| Vent valve, location/task/function | Gasoline engines | GF47.30-P-3101D |
