Fuel Injection System Test (Step 7.0)
Fuel Injection System Test (Step 7.0)

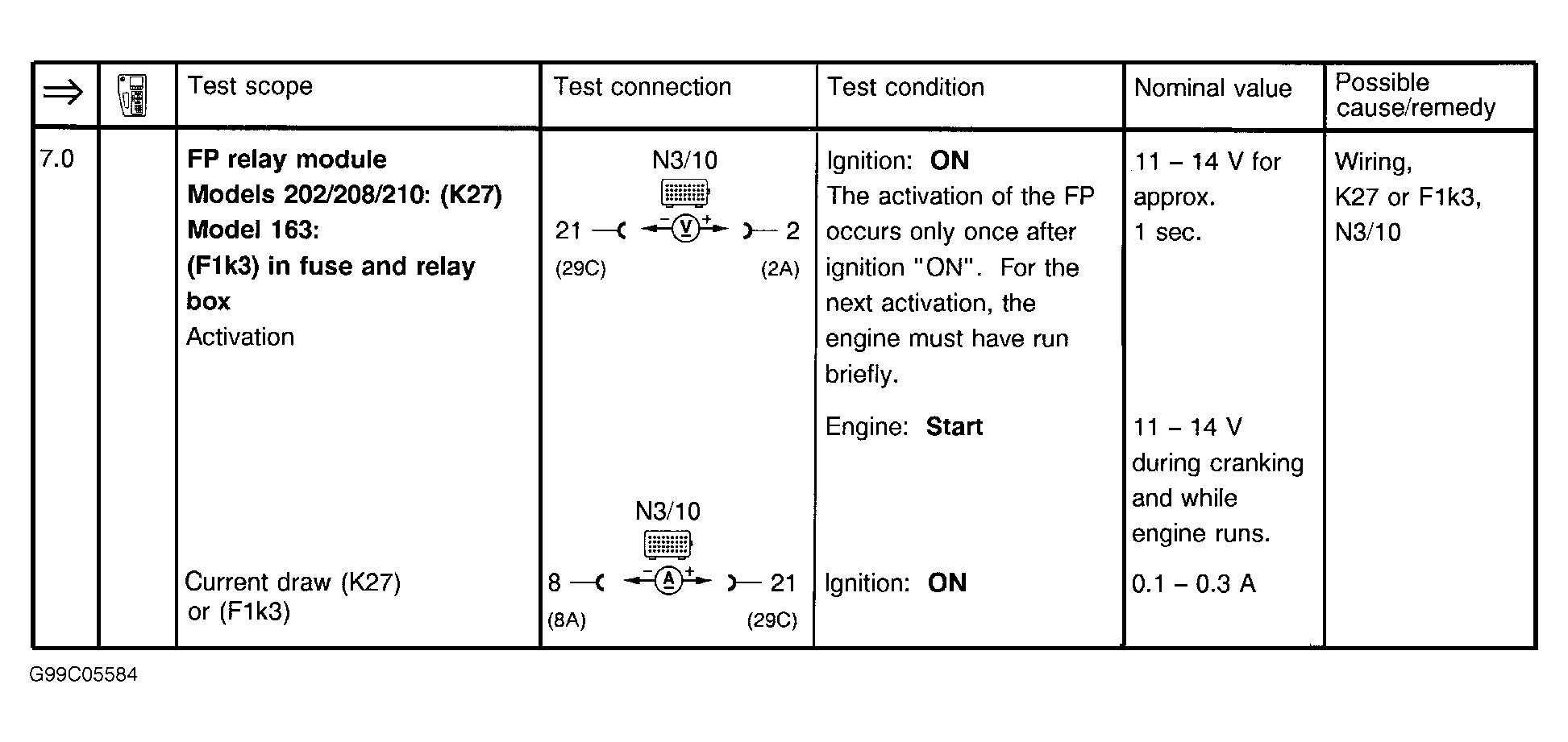

Fig 1: Fuel Injection System Test (Step 7.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
