Fuel Injection System Test (Steps 1.2-2.2)
Fuel Injection System Test (Steps 1.2-2.2)

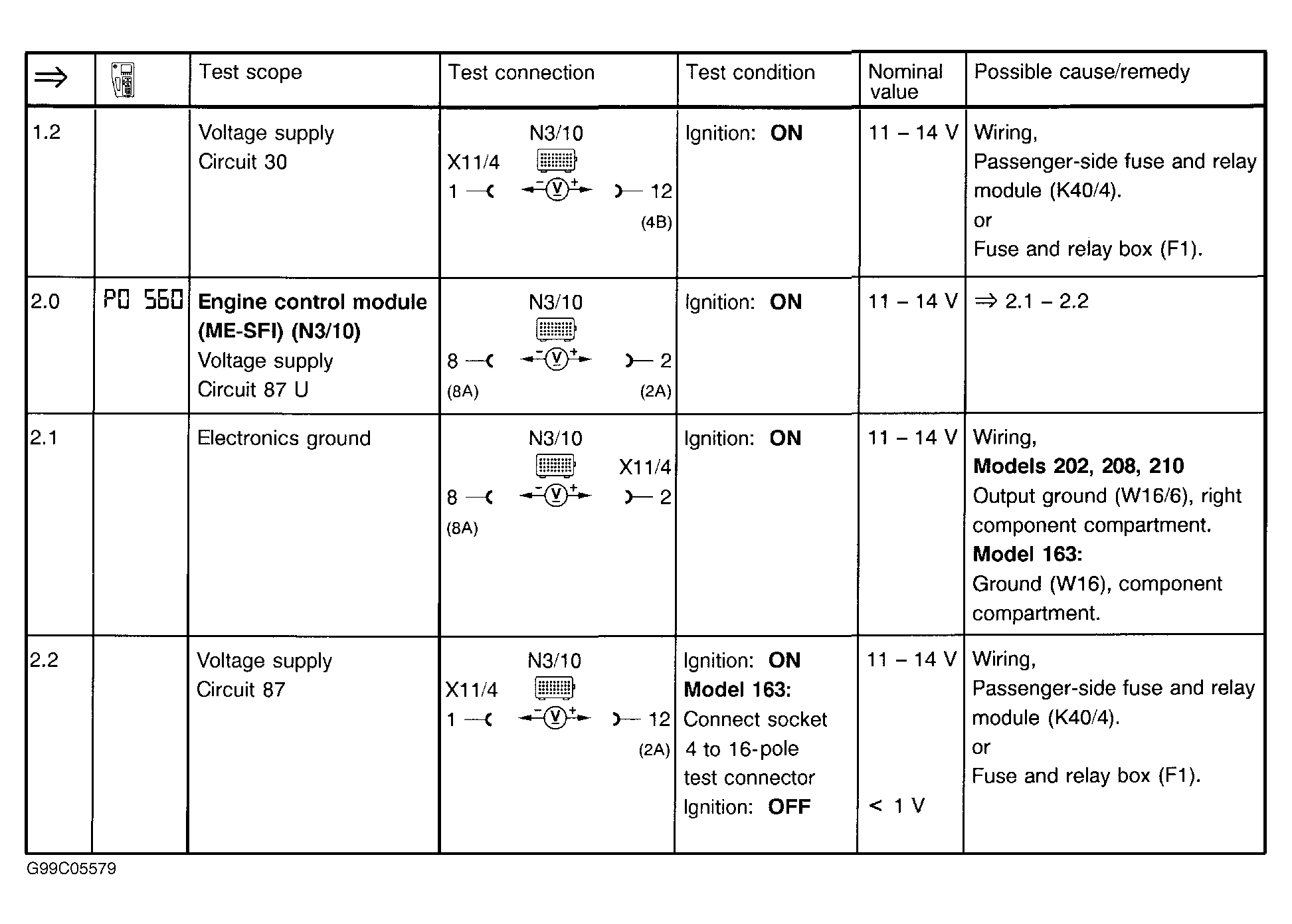

Fig 1: Fuel Injection System Test (Steps 1.2-2.2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
