Fuel Injection System Test (Steps 30.0 & 31.0)
Fuel Injection System Test (Steps 30.0 & 31.0)

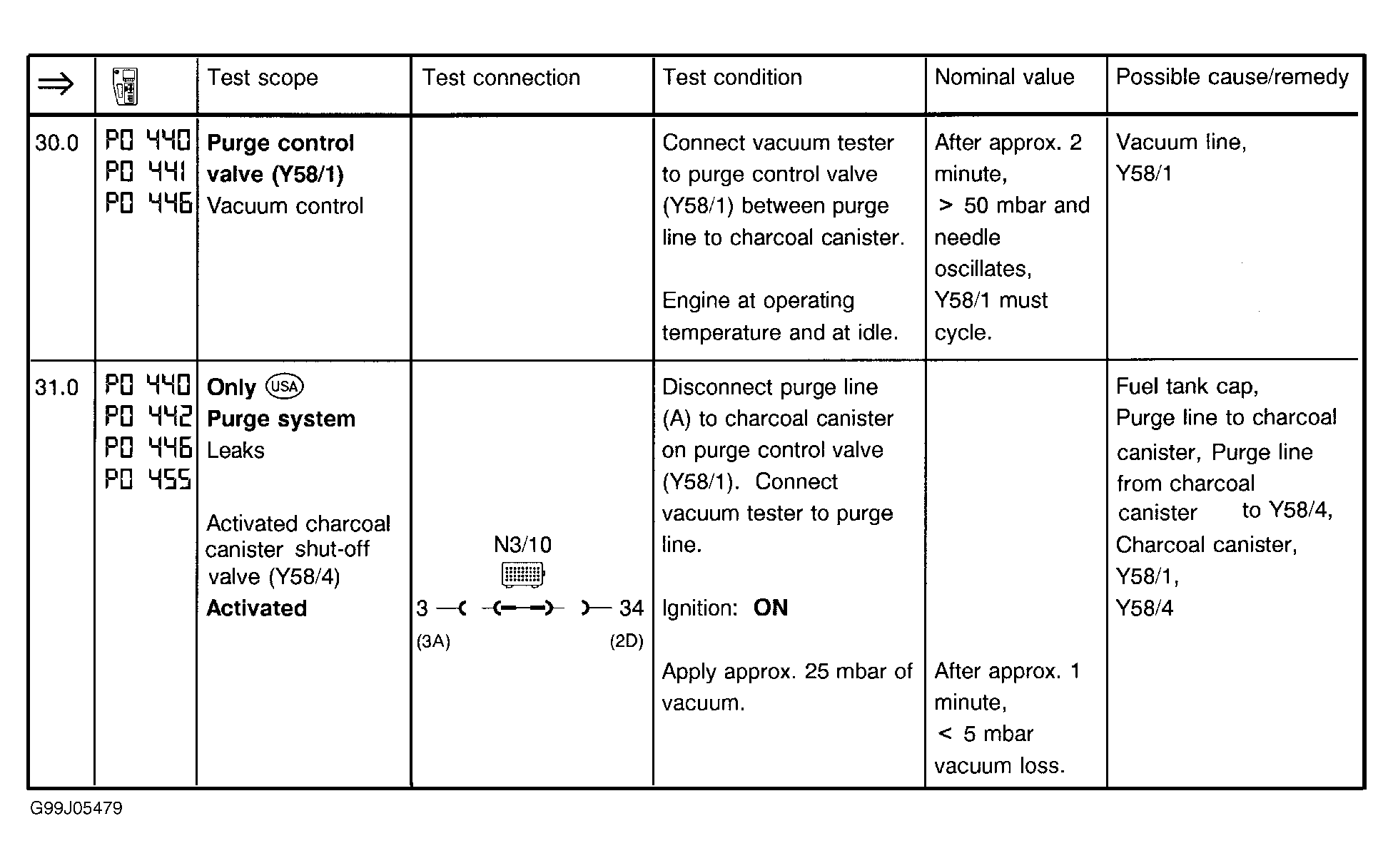

Fig 1: Fuel Injection System Test (Steps 30.0 & 31.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
