Fuel Injection System Test (Steps 32.0-33.1)

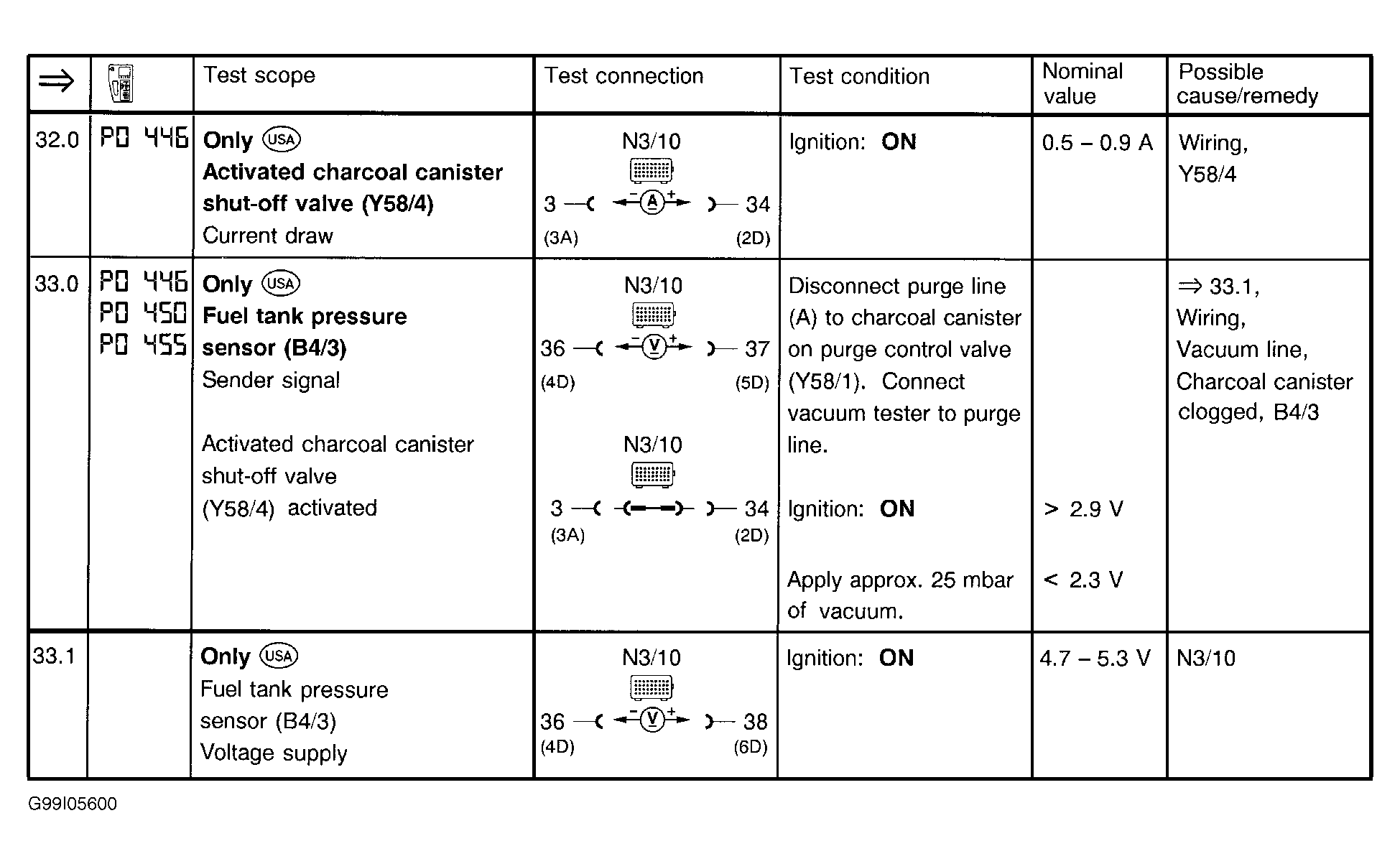

Fig 1: Fuel Injection System Test (Steps 32.0-33.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
