Ignition System Test (Steps 14.0-15.0)
Ignition System Test (Steps 14.0-15.0)

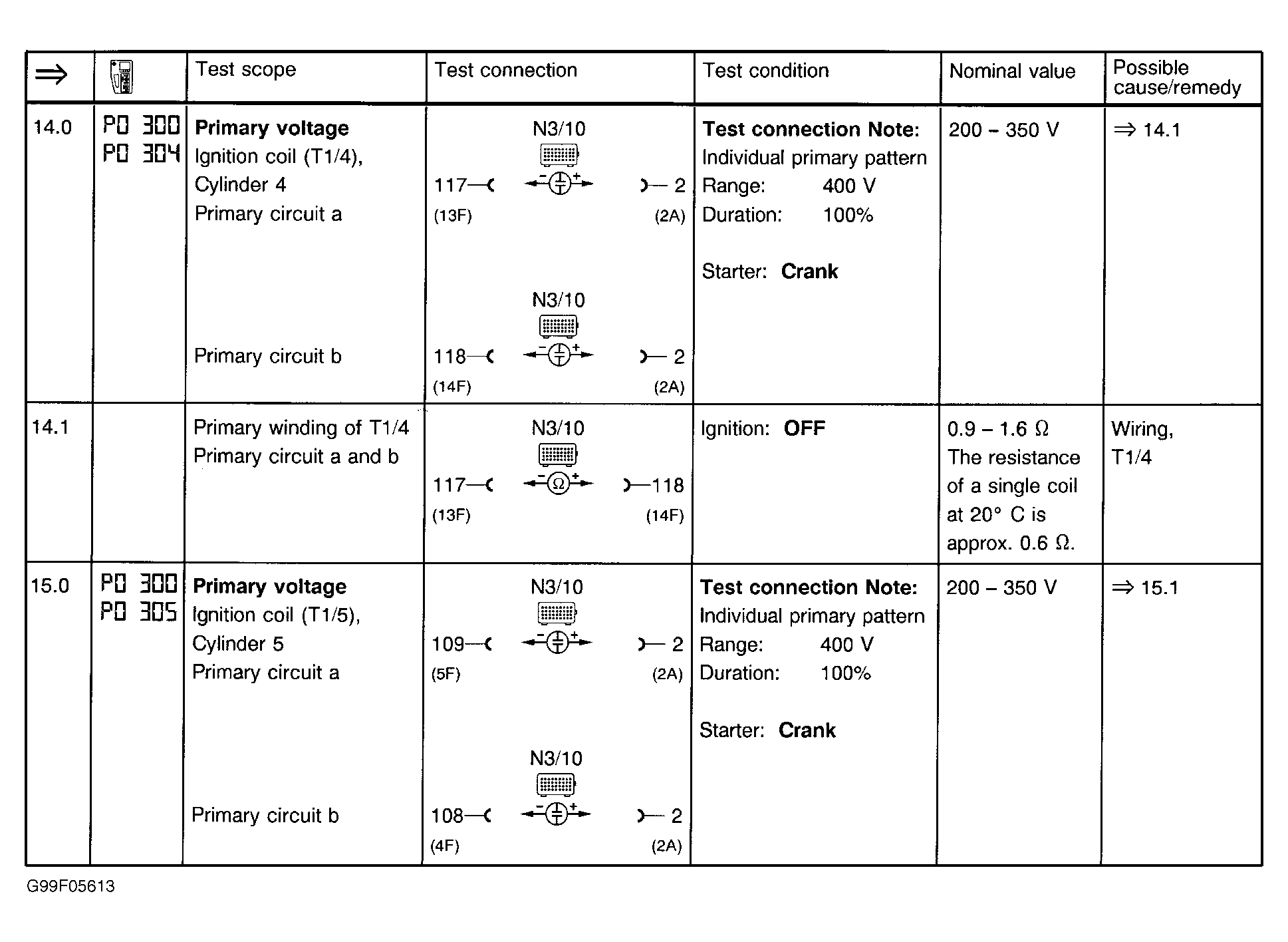

Fig 1: Ignition System Test (Steps 14.0-15.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
