Ignition System Test (Steps 15.1-16.1)
Ignition System Test (Steps 15.1-16.1)

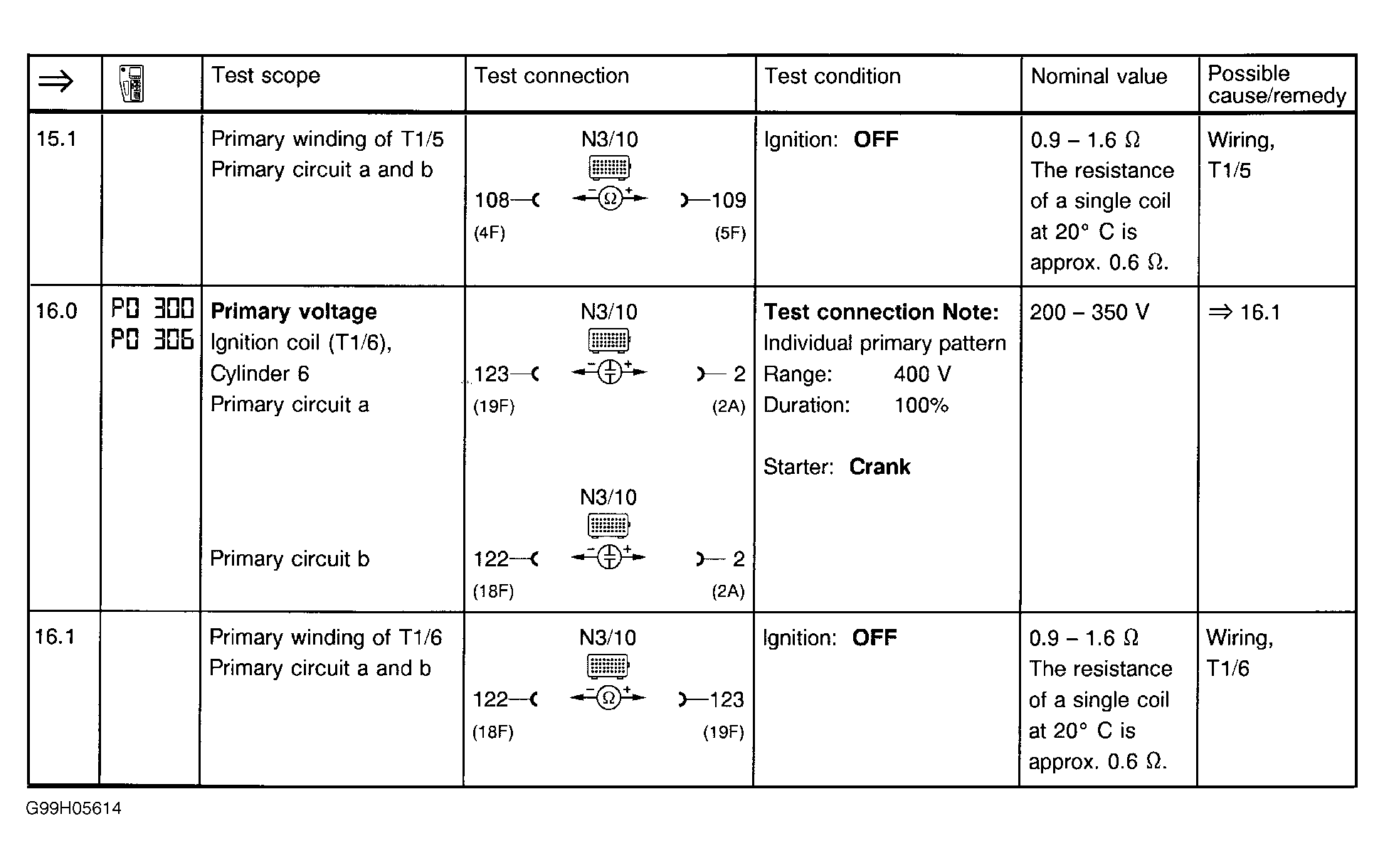

Fig 1: Ignition System Test (Steps 15.1-16.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
