All Activity Module Connector End View (N10)

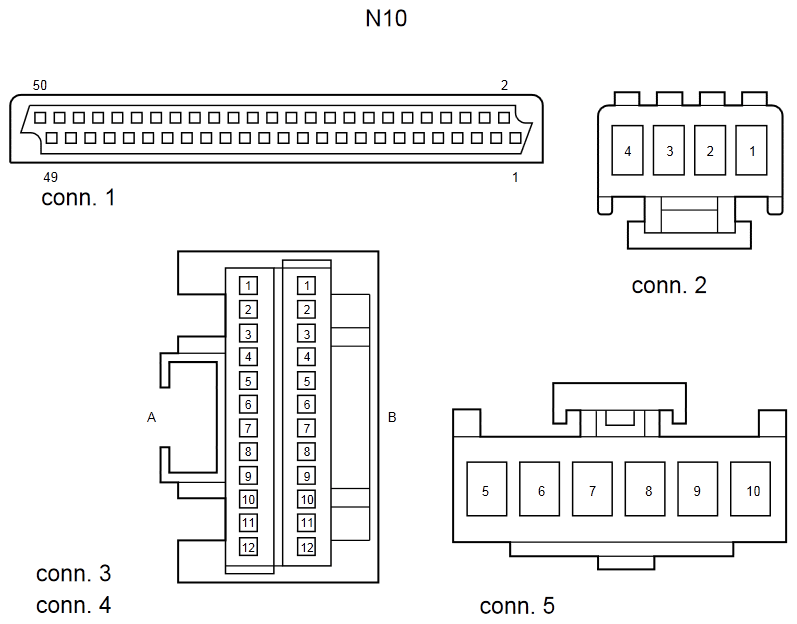

Fig 1: All Activity Module Connector End View (N10)
G10971850Courtesy of MERCEDES-BENZ USA
