Front SAM Control Unit Connector End View (N10)

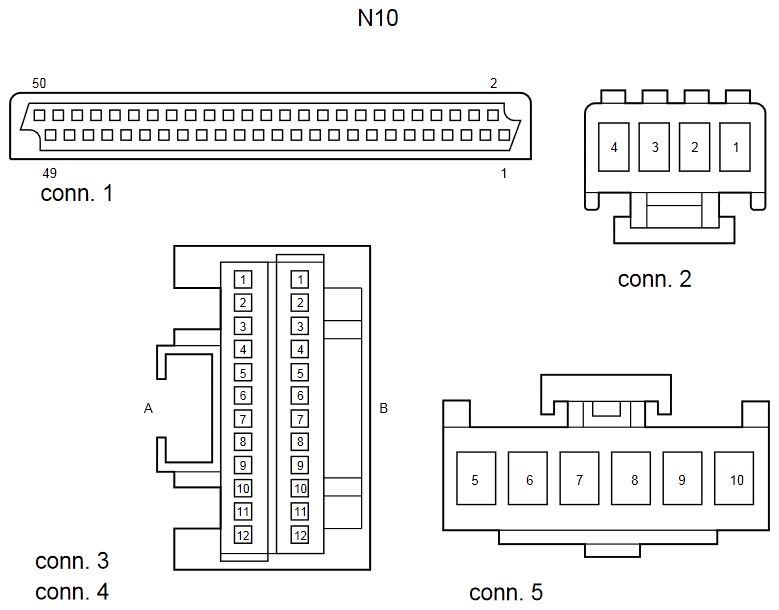

Fig 1: Front SAM Control Unit Connector End View (N10)
G10972823Courtesy of MERCEDES-BENZ USA
