Fuel pump position - GF47.20-P-4003-01GH

Model 163

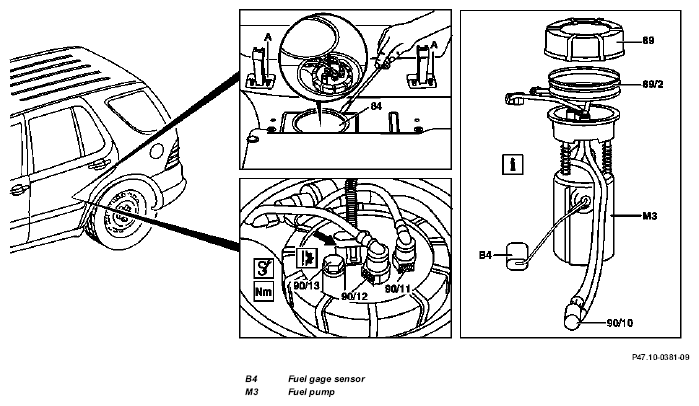

Fig 1: Identifying Fuel Pump And Fuel Gage Sensor

G04607549

Model 163

at fuel delivery module in fuel tank
