Fuel Injection System Test (Step 25.0)
Fuel Injection System Test (Step 25.0)

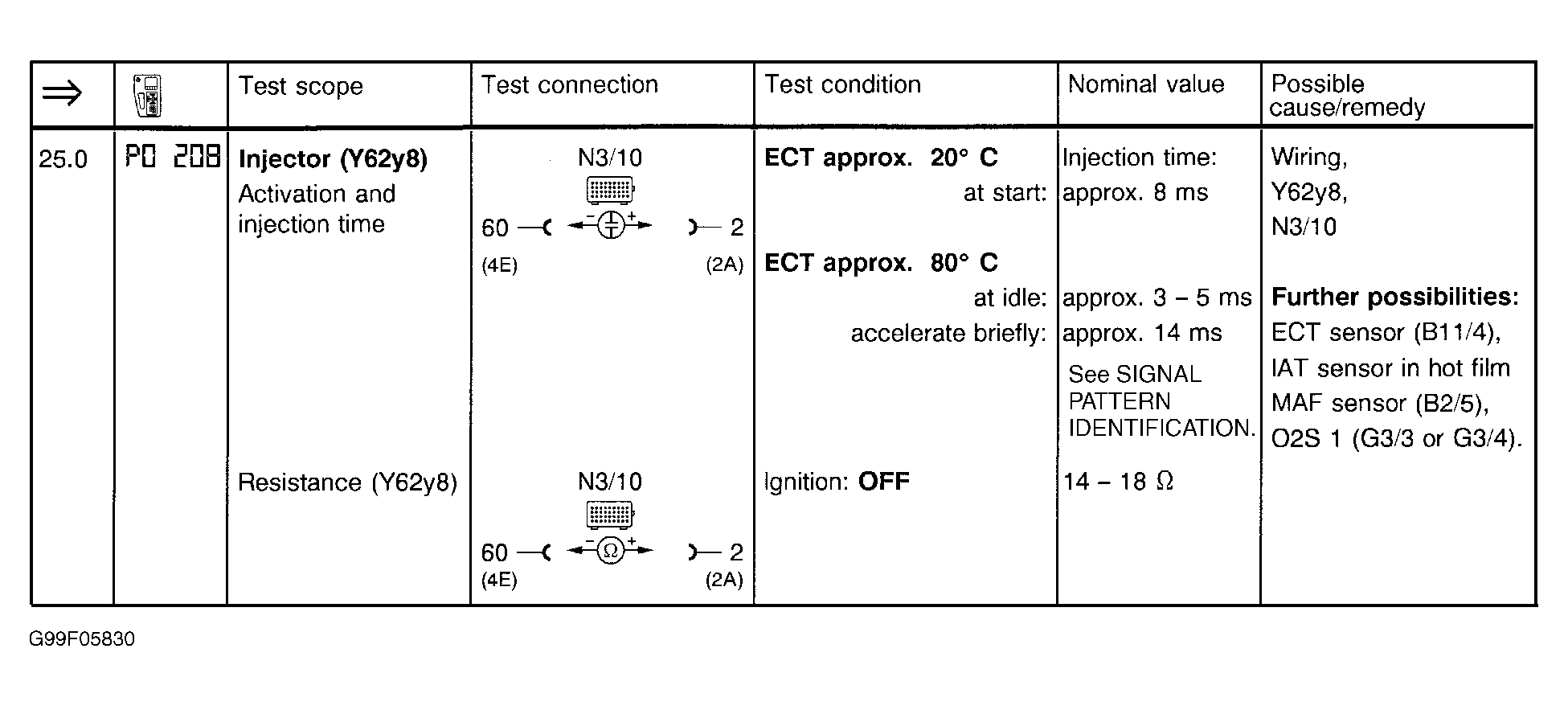

Fig 1: Fuel Injection System Test (Step 25.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
