Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
Fuel Injection System Tests
›
Fuel Injection System Test (Step 29.0)
Fuel Injection System Test (Step 29.0)

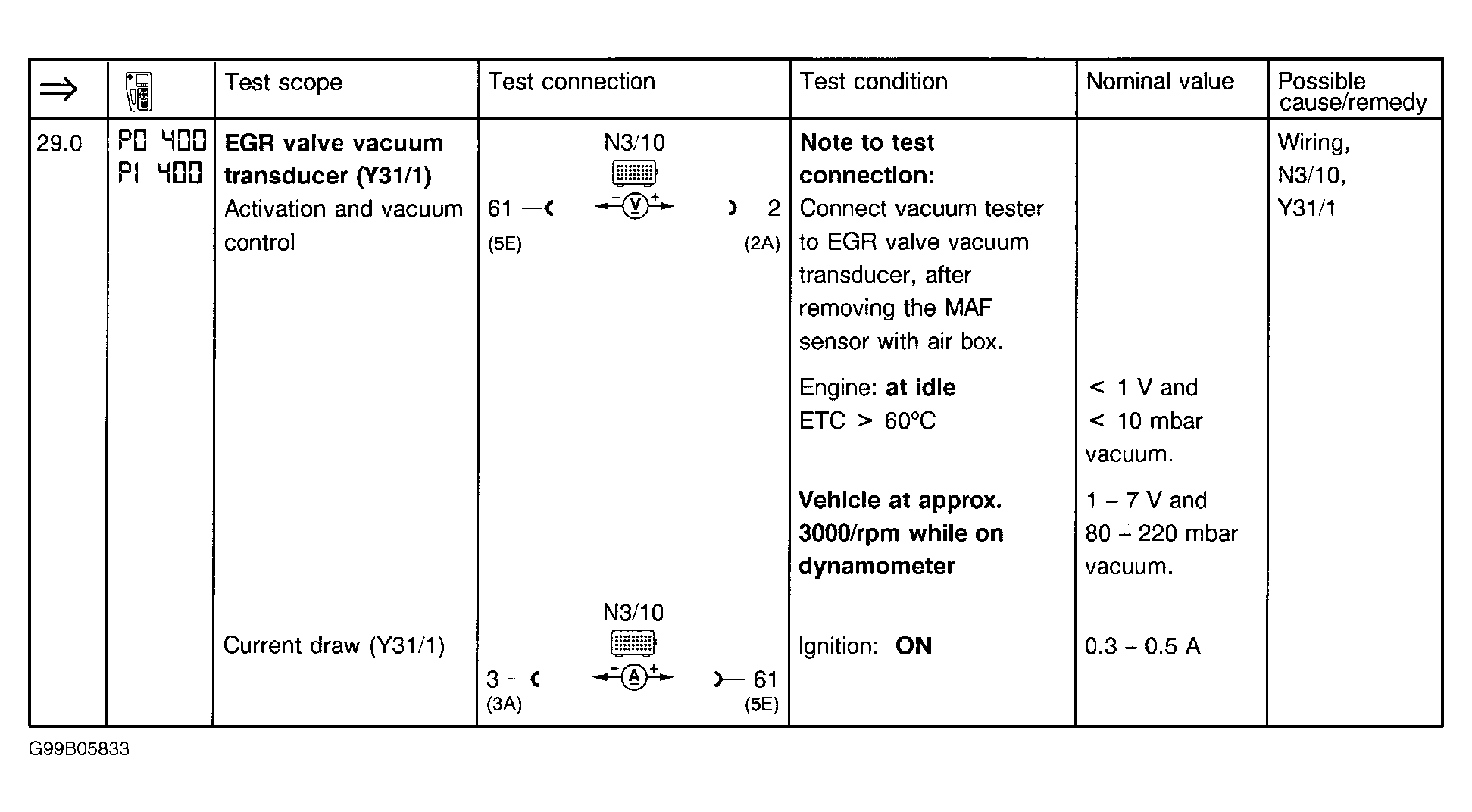

Fig 1: Fuel Injection System Test (Step 29.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
