Fuel Injection System Test (Steps 4.1-4.3)

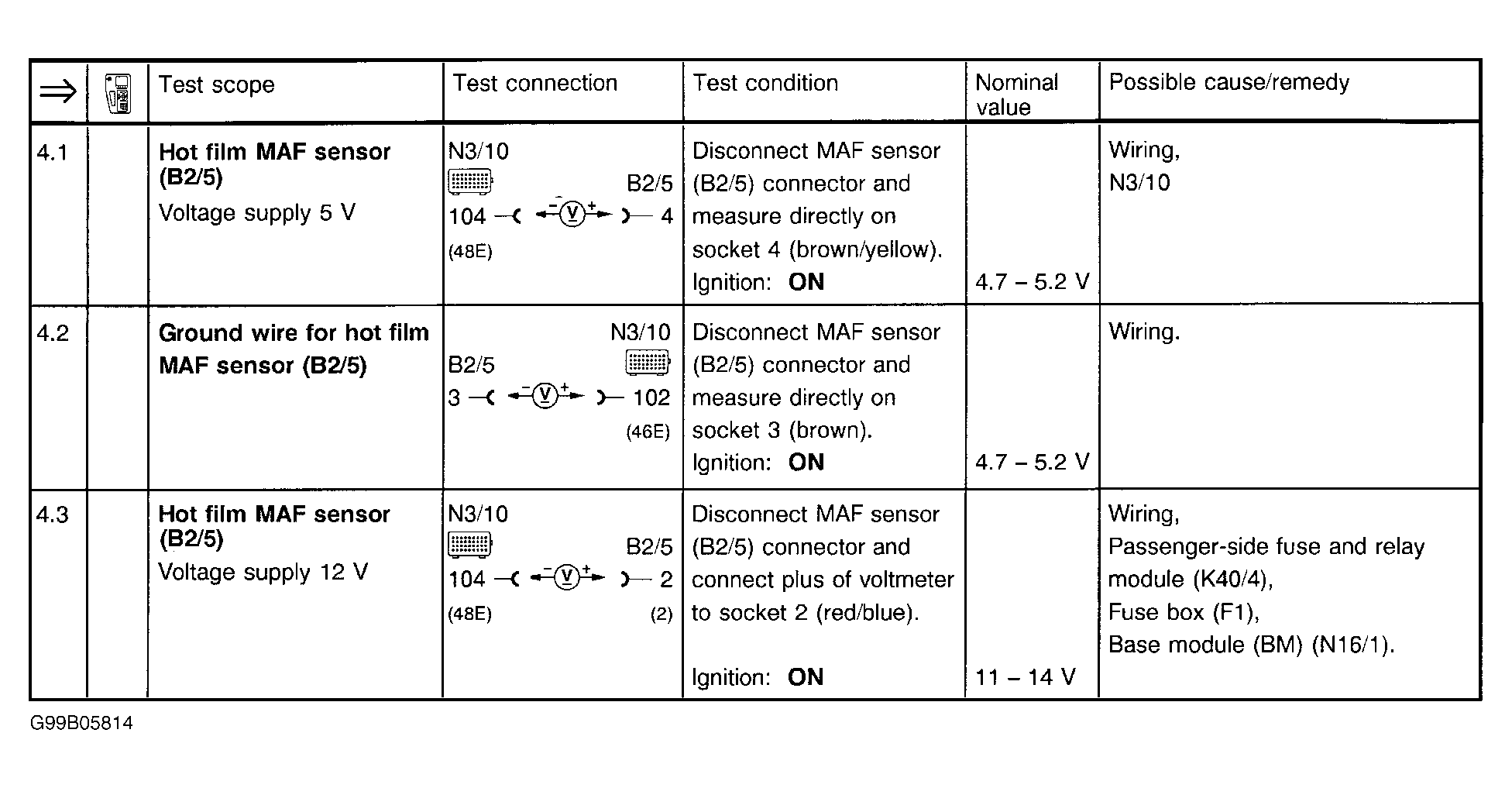

Fig 1: Fuel Injection System Test (Steps 4.1-4.3)
G99B05814Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
