Fuel Injection System Test (Steps 8.0 & 8.1)
Fuel Injection System Test (Steps 8.0 & 8.1)

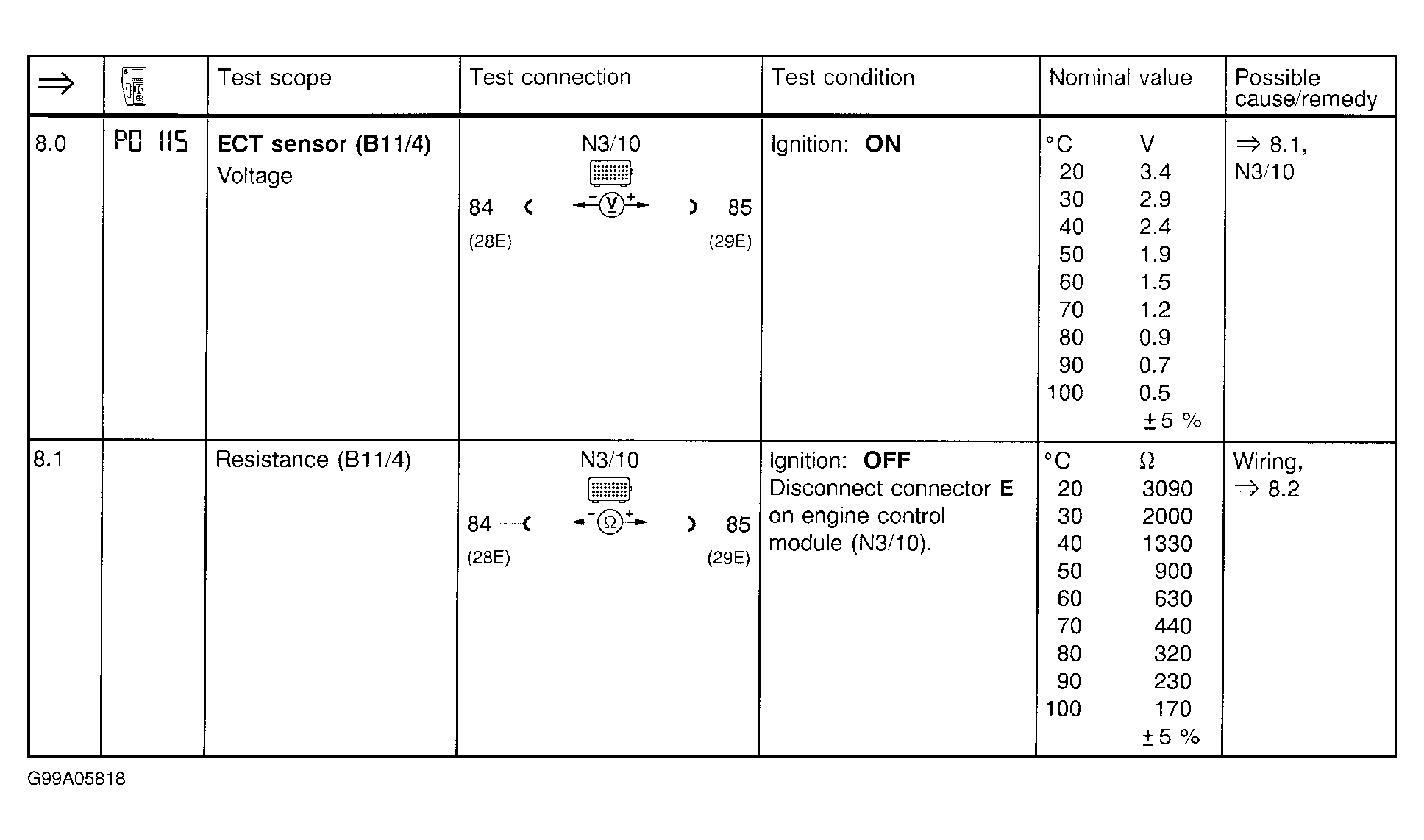

Fig 1: Fuel Injection System Test (Steps 8.0 & 8.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
