Fuel Pump Tests

NOTE: Far left column in following graphic is step numbers.

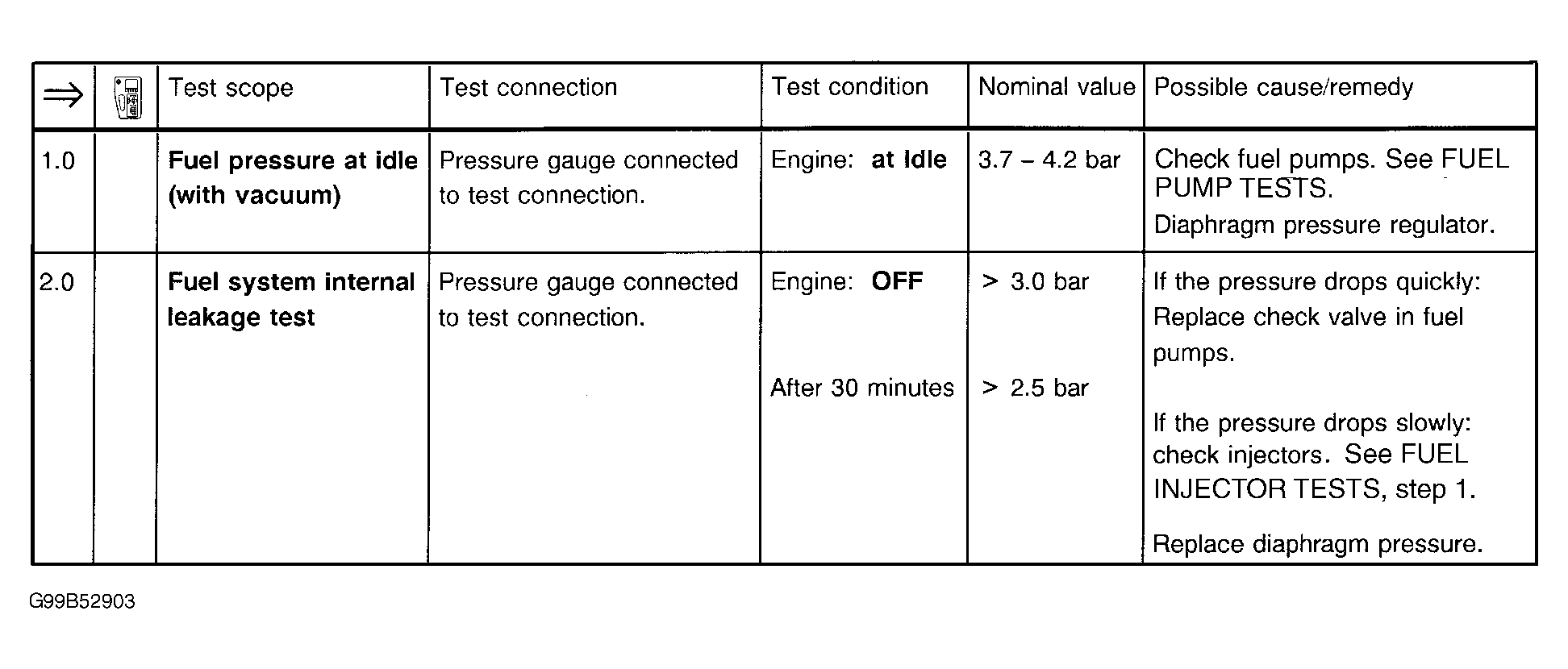

Fig 1: Fuel Pressure & Leakage Tests
G99B52903Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

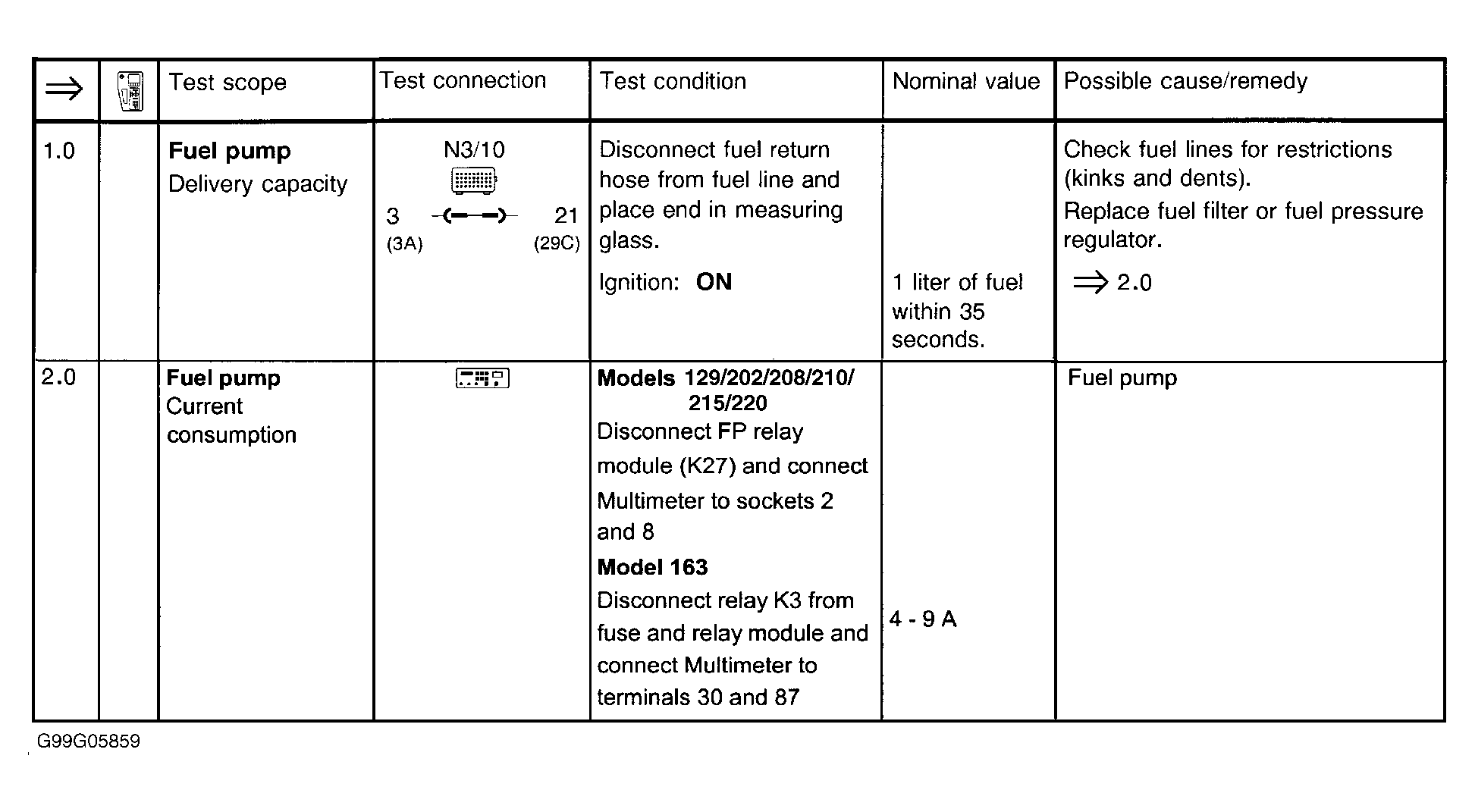

Fig 2: Fuel Pump Tests
G99G05859Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
