Ignition System Test (Steps 20.0-20.1)
Ignition System Test (Steps 20.0-20.1)

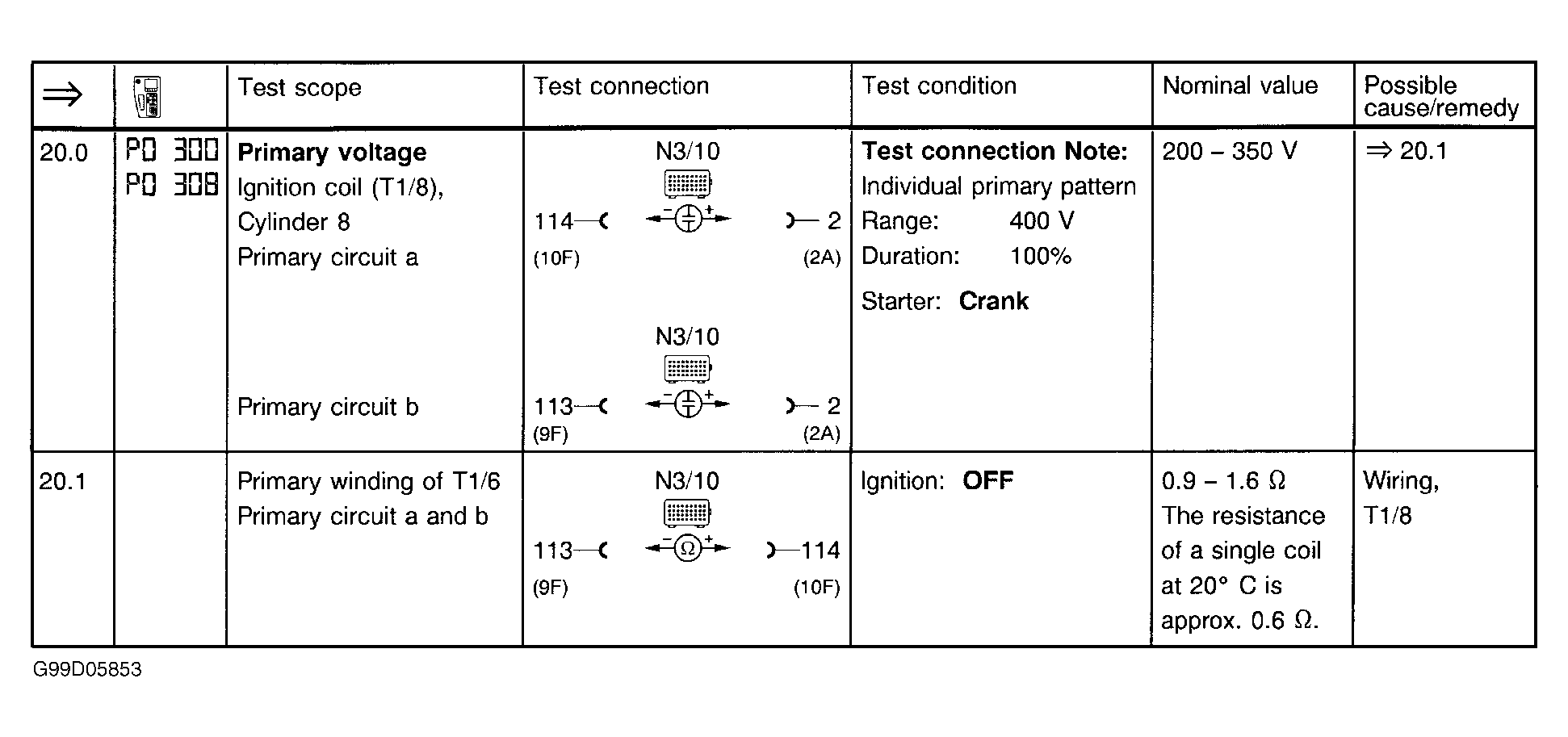

Fig 1: Ignition System Test (Steps 20.0-20.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
