Ignition System Test (Steps 7.0 & 8.0)
Ignition System Test (Steps 7.0 & 8.0)

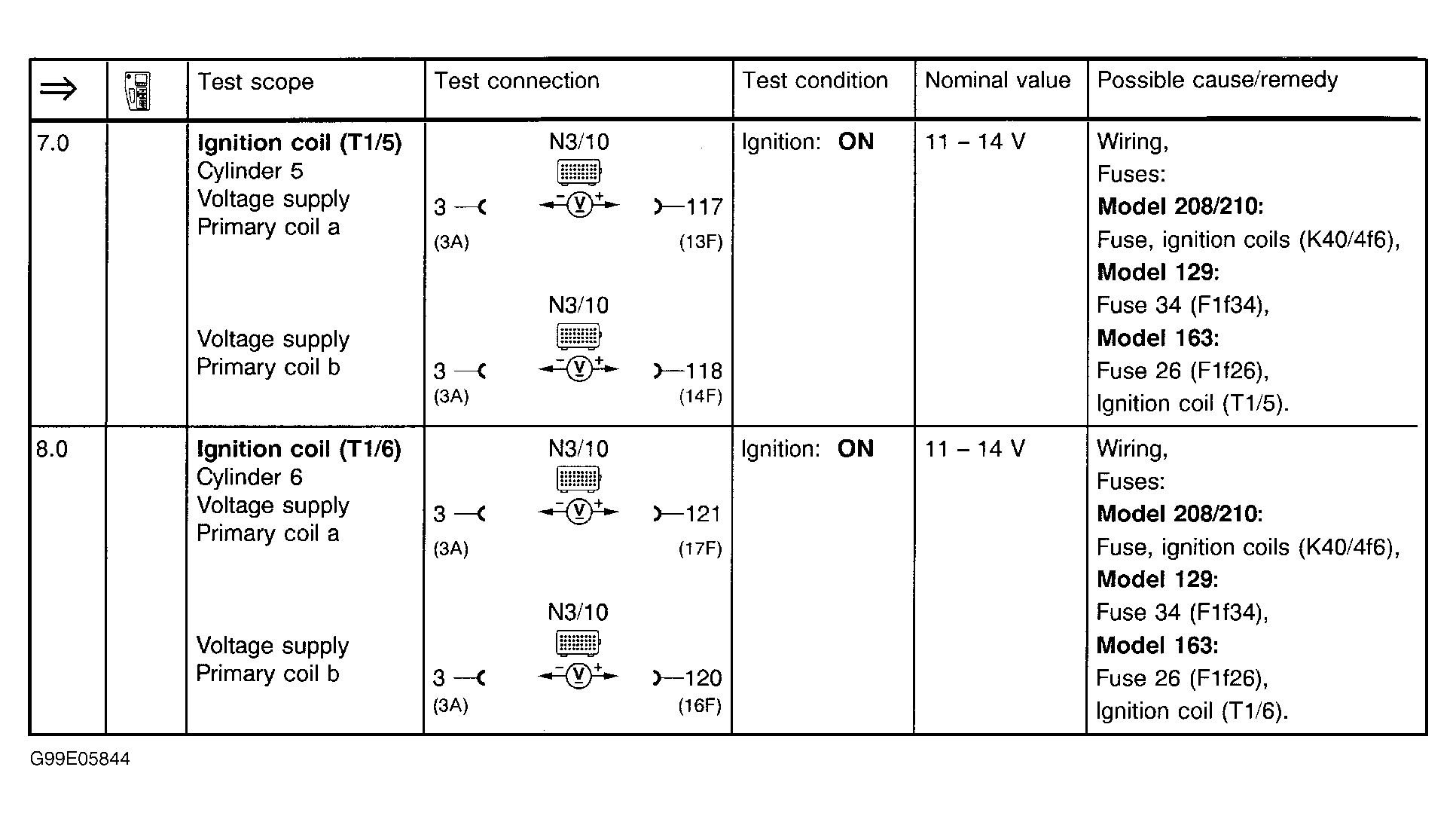

Fig 1: Ignition System Test (Steps 7.0 & 8.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
