Ignition System Test (Steps 9.0 & 10.0)
Ignition System Test (Steps 9.0 & 10.0)

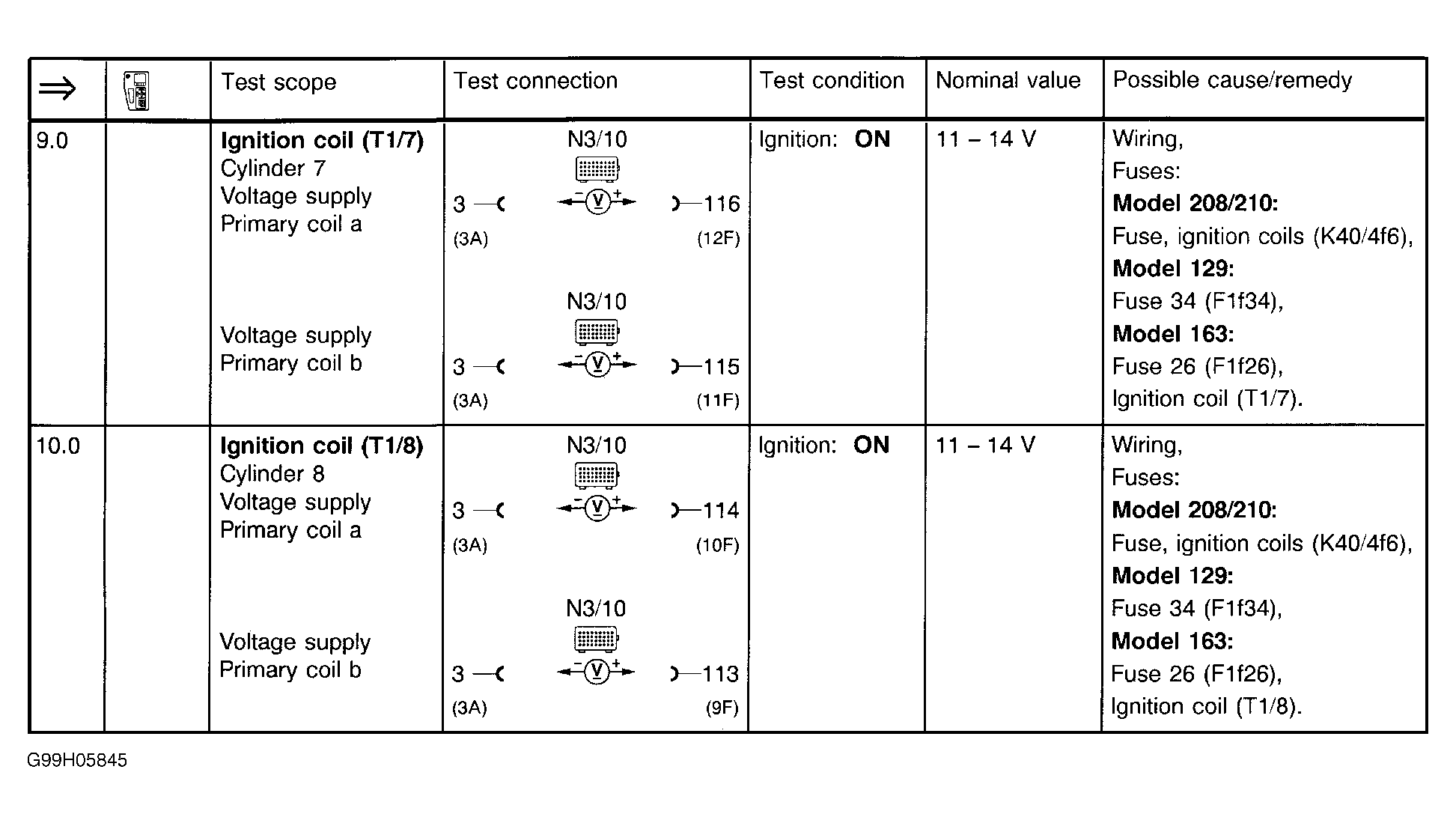

Fig 1: Ignition System Test (Steps 9.0 & 10.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
