Component Locations

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2001 Mercedes-Benz SLK320, 2001 Mercedes-Benz SLK230, 2001 Mercedes-Benz SL600, 2001 Mercedes-Benz SL500, and 2001 Mercedes-Benz S600. However, it is still accessible from the selected car via links, so may be relevant.

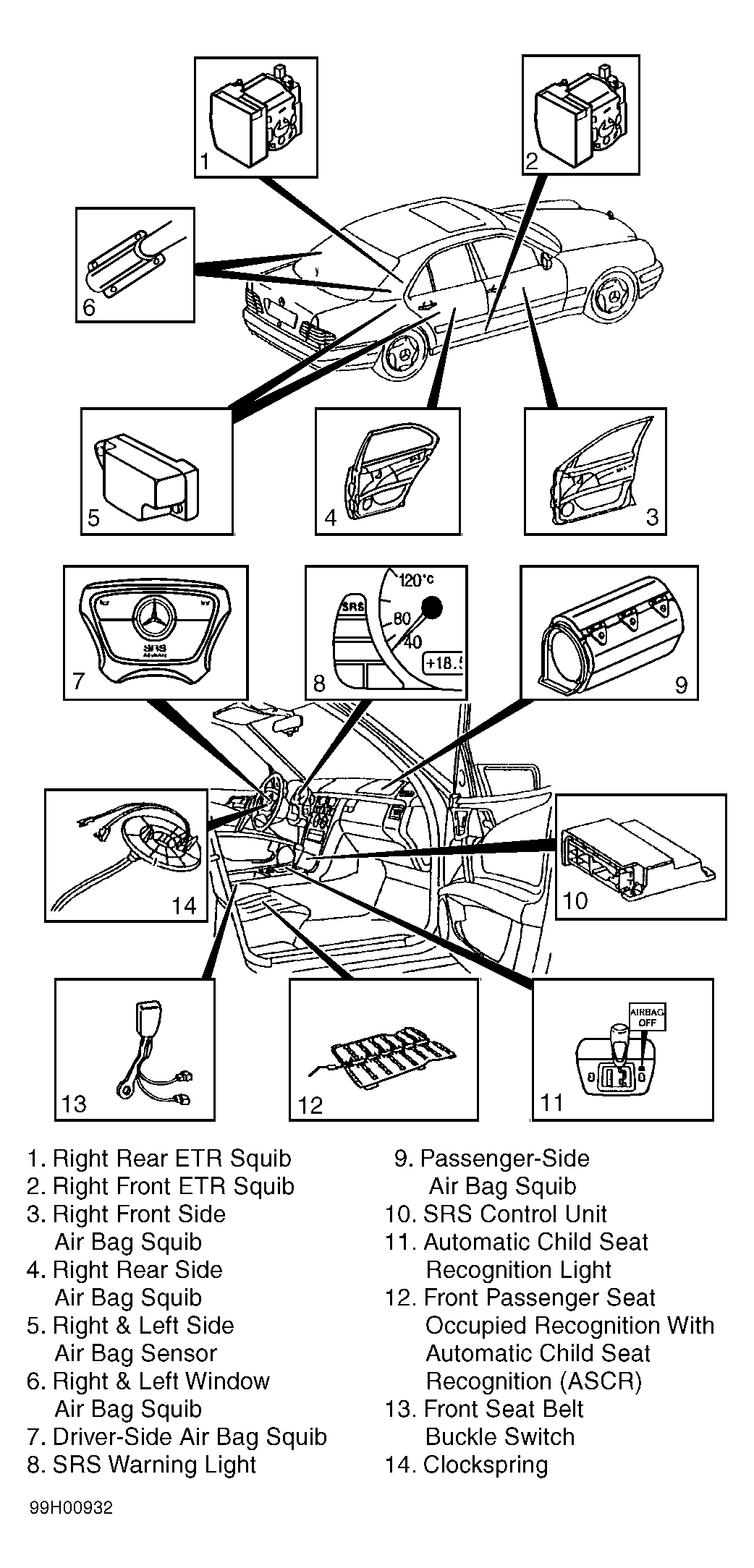

Fig 1: Locating Restraint System Components (2000 E Class Shown; Others Are Similar)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
