Air distribution switch, location/task/design/function - GF83.25-P-2101GI
MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning

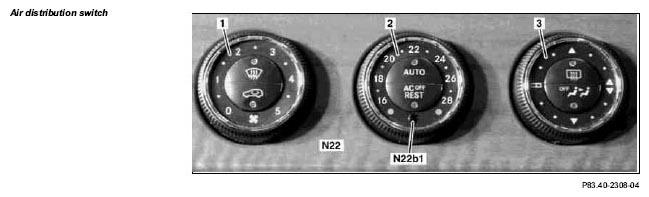

Fig 1: Identifying Air Distribution Switch - Model 163 As Of 1.9.01 With Code (580a) Automatic Air Conditioning
| Air distribution switch, location | The air distribution switch (3) is located on the right in the AAC push-button control module (N22). | ||
| Air distribution switch, task | The air distribution switch (3) controls the air flow to the air outlets for ventilation of the passenger compartment. | ||
| Air distribution switch, design | The air distribution switch (3) is equipped with a rotary ring, with which the air distribution can be set. The LEDs in the rotary ring display the air distribution level. | ||
| Air distribution switch, function | GF83.25-P-2101-01GI |
