Blower switch, location/task/design/function - GF83.25-P-2100GI
MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning

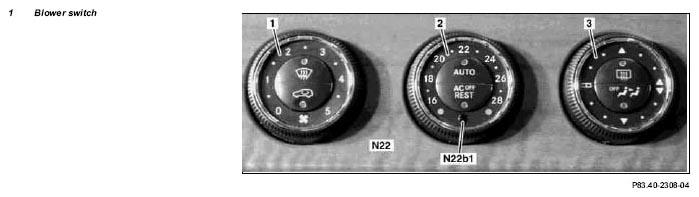

Fig 1: Identifying Blower Switch - Model 163 As Of 1.9.01 With Code (580a Automatic Air Conditioning
| Blower switch, location | The blower switch (1) is located on left in the AAC push-button control module (N22). | ||
| Blower switch, task | The blower switch (1) activates several blower stages in fresh air and recirculating air mode. | ||
| Blower switch design | The blower switch (1) is equipped with a rotary ring with which the blower levels can be set. The LEDs in the rotary ring display the set blower level. | ||
| Blower switch, function | The blower switch (1) sets the control voltage for the blower regulator in 6 stages and 5 intermediate settings via the push-button control module, depending on the setting. This facilitates blower speed control of 0 -100 %. |
