Rear ventilation control panel, function - GF83.40-P-2007GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

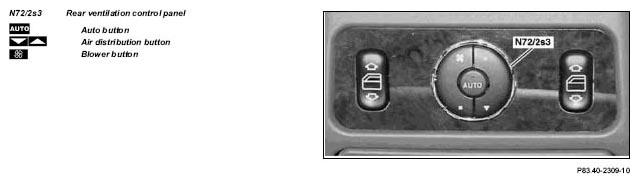

N72/2s3 Rear ventilation control panel
Auto button
Air distribution button
Blower button
The rear ventilation control panel (N72/2s3) enables specific settings to be made for the rear compartment ventilation system.
The following possibilities are available:
- Setting air quantity by pressing the blower button (
)
- Air distribution by pressing the air distribution button (
)
- Automatic air distribution/blower speed by pressing the Auto button (
) (Control through AAC push-button control module (N22))
| Blower button position/task/function | GF83.40-P-2144GI | ||
| Air distribution button, location/task/function | GF83.40-P-2159GI | ||
| Auto button, location/task/function | GF83.40-P-2147GJ |
