Temperature selector wheel, location/task/design/function - GF83.25-P-2102GI
MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning

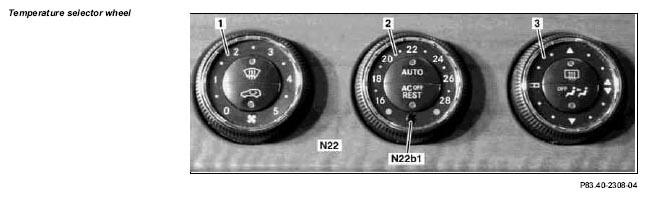

Fig 1: Identifying Temperature Selector Wheel - Model 163 As Of 1.9.01 With Code (580a) Automatic Air Conditioning
| Temperature selector wheel, location | The temperature selector wheel (2) is located in the center in the AAC push-button control module (N22). | ||
| Temperature selector wheel, task | The temperature selector wheel (2) serves to preselect the temperature desired in the vehicle interior. | ||
| Temperature selector wheel design | The temperature selector wheel (2) is equipped with a rotary ring, with which the temperature values can be set. The LEDs in the rotary ring display the set temperature level. | ||
| Temperature selector wheel, function | GF83.25-P-2102-01GI |
