TPMS Reminder Reset - Procedure 11
NOTE:
Whenever tire pressure has been adjusted, or when wheels or tires have been replaced, the TPM system must be reactivated before it can work.
NOTE:
TPMS activation is accomplished by using the multifunction display control buttons on the steering wheel.
- Switch ignition to ON.
- Use the multifunction display buttons (left side of steering wheel) to access the standard (default) display.
- Use the up or down arrow multifunction display buttons to access the "Tire Pressure" menu. You will see a message that indicates that it is the TPMS that is being adjusted.

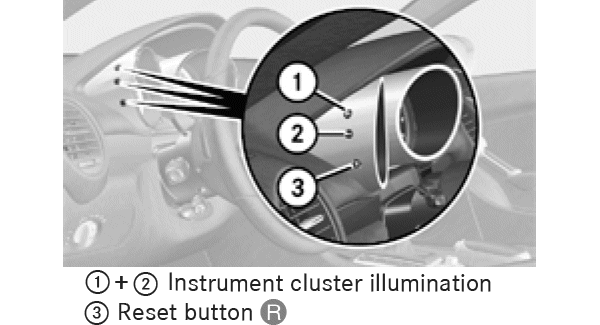

- Press the reset button. See Fig 1.
- You will see a message that asks that the adjustment be confirmed. Use the "+" button to select "YES".
- Press "OK". A comfirmation message will be displayed.
- After 10 minutes of driving, the current tire inflation pressure values are accepted as reference values.
