HERMANN Electronics Diagnostic Engine Analyzers (58.40/104)
Publication date: 1998-10-01Reference number: 58.40/104
HERMANN ELECTRONICS DIAGNOSTIC ENGINE ANALYZERS
TECHNICAL SERVICE BULLETIN
ALL MODELS - HERMANN ELECTRONICS DIAGNOSTIC ENGINE ANALYZERS (APPROVED FOR MBNA STANDARD SERVICE EQUIPMENT PROGRAM)
Model(s): All Mercedes-Benz Models
Group: 58 - Special Tools
Bulletin No.: S-SI-MBNA-58.40/104
Date: October 1998
SERVICE INFORMATION

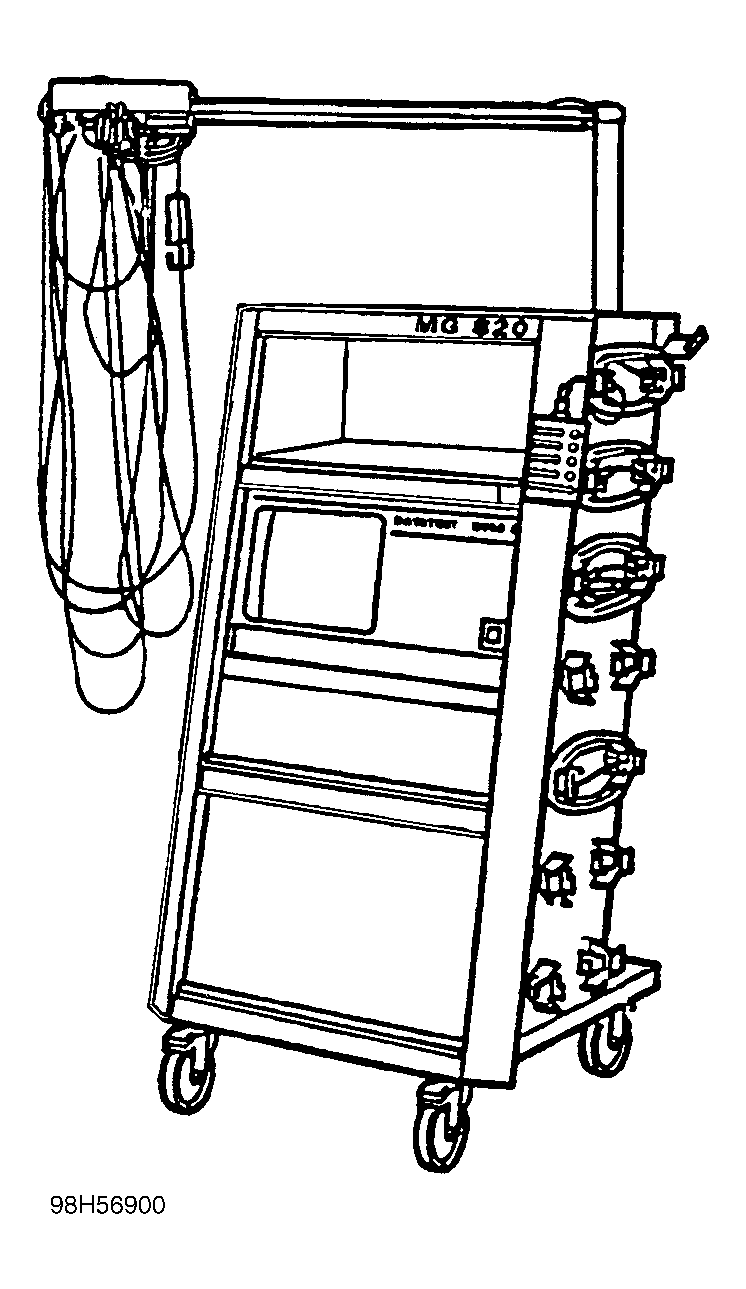

MBNA has approved the use of specific Hermann Electronics diagnostic engine analyzers (Fig. Fig 1 ) available via Pierburg Instruments Inc., Auburn Hills, MI. Model D960S is available for the full service MB Dealer and Model D950 for the MB Service Center. These units are specifically packaged for the MB vehicles in the US market and contain measurement and diagnostic functions to direct the user in the diagnosis of modern engines as well as previous, older MB engines. The system uses several microprocessors and can process a wide variety of signals and both units have a user-friendly menu structure and remote control operated keypad to ensure fast and accurate selection and operation of the diagnostic functions. In addition, each analyzer comes complete with the engine specific adapter cable sets to directly connect engines M104/111, M119/120 and engines using ME 1.0 management systems.
Both analyzers are housed in a slim cabinet which minimizes floor space and have an overhead boom to maintain the order of the fundamental cablesets. In addition, their modular construction will ensure that the system can expand to meet increasing future demands for diagnostic equipment and allow for upgrades. Both models are equipped with a print-ready buffer, to allow use of a variety of (purchased separately) printers. The recommended printer is an EPSON LQ 570 or equivalent. Printer must be purchased locally and is not available through the MBNA Standard Service Equipment Program.
ENGINE ANALYZER MODEL D950MBUS FEATURES
DATATEST D950 Computer-diagnostic system with these capabilities; starter/battery test, alternator test, dynamic compression test, idle quality, scope-memory and measurement of special signals (duty cycle, etc.) (Fig. Fig 3 ).
ENGINE ANALYZER MODEL D960MBUS FEATURES
DATATEST D960S Computer-diagnostic system with these capabilities; battery test, starter test, alternator test, dynamic compression test, cylinder comparison test, frequency and time measurement, idle quality, scope-memory and measurement of special signals (duty cycle, etc.) (Fig. Fig 2 ).
Four additional optional accessories will be available after January 1999.
- DS 01 - Pressure sensor (for D960 only)
- CD1227 - Dieselbox CD 1227
- HGA 400 5 - Gas analyzer HGA400 5 (5 gas)
- (part number TBD) - Adapter for ME 2.0/2.1 engines (available 2nd Quarter 1999)
| Description | Part No. |
|---|---|
| D950MBUS (MB Service Center only), consisting of: | D950MBUS |
| DATATEC D 950 computer diagnostic system, includes; remote keypad control, timing light, amp probe, pick-up with kV-connection, connecting lead, adapter cable MB (EDC52), MB (CD88) and operation manual. | D950 |
| Oil temperature probe | TS 01 |
| Printer-buffer | O DPR 02 |
| Adapter CD 1216 A (M119/120; V-8/V-12 Dual ignition system) | CD 1216 A |
| Adapter CD 1223 A (9 Pin emulation cable; M120 left bank) | CD 1223 A |
| Adapter CD 1225 (M120 right bank only) | CD 1225 |
| Adapter CD 1222 (M104/111: MB HFM System) | CD 1222 MB |
| Adapter CD 1230 (ME 1.0) (primary, secondary, 2 kV leads) | CD 1230 |
| Cabinet MG 820 (blue) | MG 820 |
| Boom (right mount) Operators Manual | KR 031 |
| D960MBUS (MB Dealer), consisting of: | D960MBUS |
| DATATEST D 960 S computer diagnostic system, includes; remote keypad control, timing light, amp probe, pick-up with kV-connection, connecting lead, adapter cable MB (EDC52), MB (CD88) and operation manual. | D960 |
| Oil temperature probe | TS 01 |
| Printer-buffer | O DPR 02 |
| Adapter CD 1216 A (M119/120; V-8/V-12 Dual ignition system) | CD 1216 A |
| Adapter CD 1223 A (9 Pin emulation cable; M120 left bank) | CD 1223 A |
| Adapter CD 1225 (M120 right bank only) | CD 1225 |
| Adapter CD 1222 (M104/111: MB HFM System) | CD 1222 MB |
| Adapter CD 1230 (ME 1.0)(primary, secondary, 2 kV leads) | CD 1230 |
| Cabinet MG 820 (blue) | MG 820 |
| Boom (right mount) | KR 031 |
| Operators Manual | |
| Order via MBNA Standard Service Equipment Program at: Phone: 1-800-458-4040; Fax: 1-800-578-7205 | |
| Description | Tool No. | Illustration |
|---|---|---|
| Engine Analyzer D960S | D960MBUS | Fig. Fig 2 |
| Engine Analyzer D950 | D950MBUS | Fig. Fig 3 |

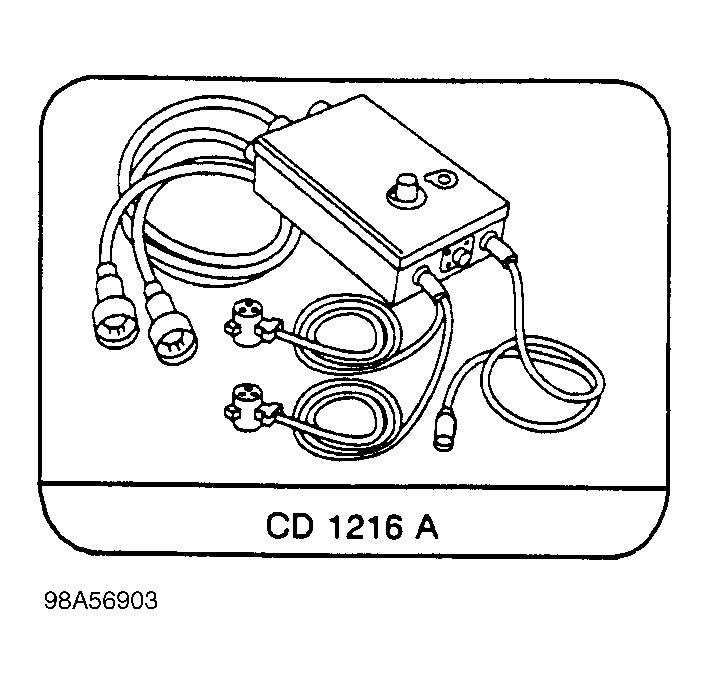

| Adapter for MB engines kV connector, TN lead M119/120 - type 140 | CD 1216 A | Fig. Fig 4 |
| Adapter for MDD emulation for MB vehicles without 9-pin diagnosis plug. Req'd for 12 cylinder engine (left ECM) | CD 1223 A | Fig. Fig 5 |
| Adapter for MDD emulation Req'd for 12 cylinder engine (right ECM) | CD 1225 | Fig. Fig 6 |
| Adapter for MB engines, M104/111 Primary/secondary lead, kV connector for cyl. 1/2 and 3/4 kV connector for cyl. l, 3 and 5 kV connector for Bosch and May- Christie coil, TN lead | CD 1222 | Fig. Fig 7 |
| Primary adapter for ME 1.0 (Includes 2KV-sensors) | CD 1230 | Fig. Fig 8 |
| Twin plug adapter allows simultaneous connection of separate lambda meter and engine analyzer to diagnostic socket | 909 589 10 21 00 (1) | |
| (1) = Dealer must order this speciai tool via MBNA Parts Division. | ||
