Suspension - Front- Control Arm Type: Description

NOTE: Repair information for CL500, CLK320, E430, ML320 & ML430 is not available from manufacturer.

Independent front suspension consists of a stabilizer bar, steering knuckles, upper and lower control arms with ball joints, coil springs and shock absorbers. See Fig 1, Fig 2 or Fig 3 .

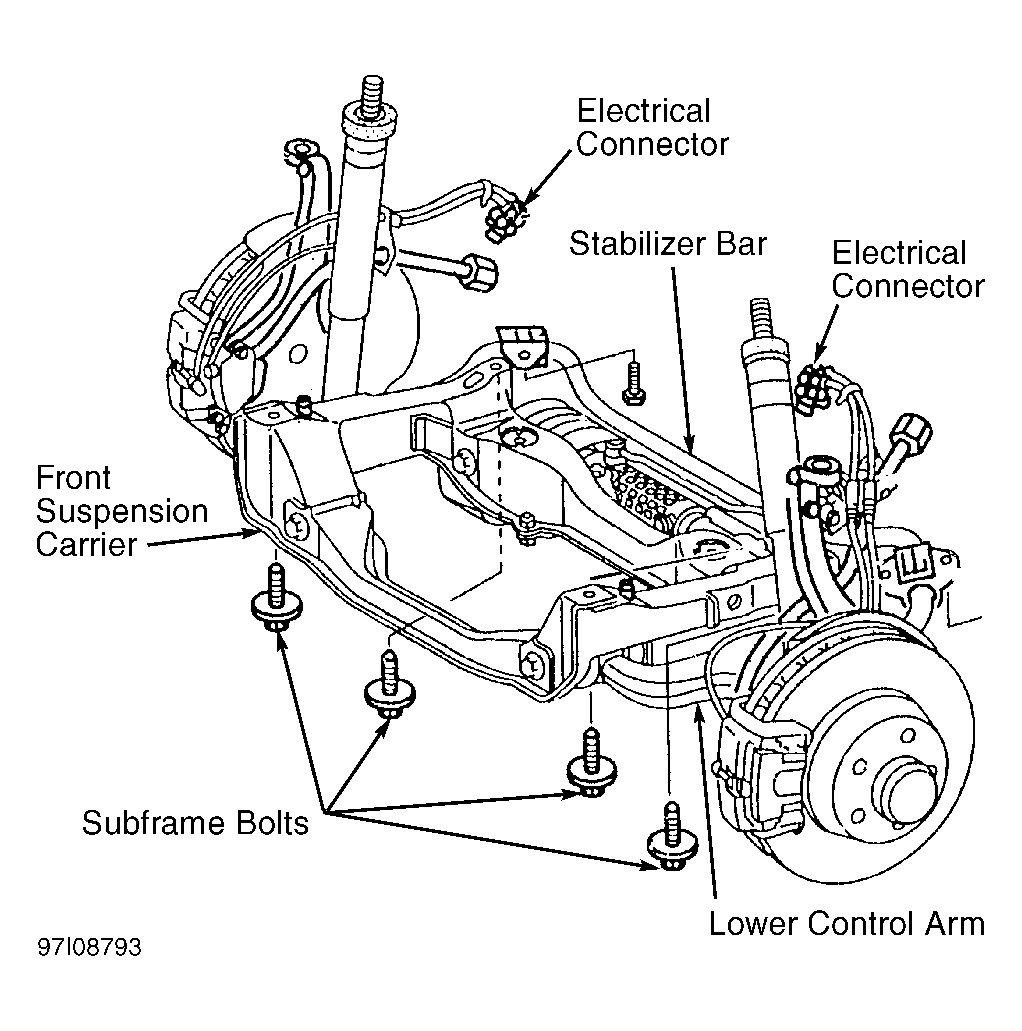

Fig 1: View Of Control Arm Suspension (C230 & C280)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

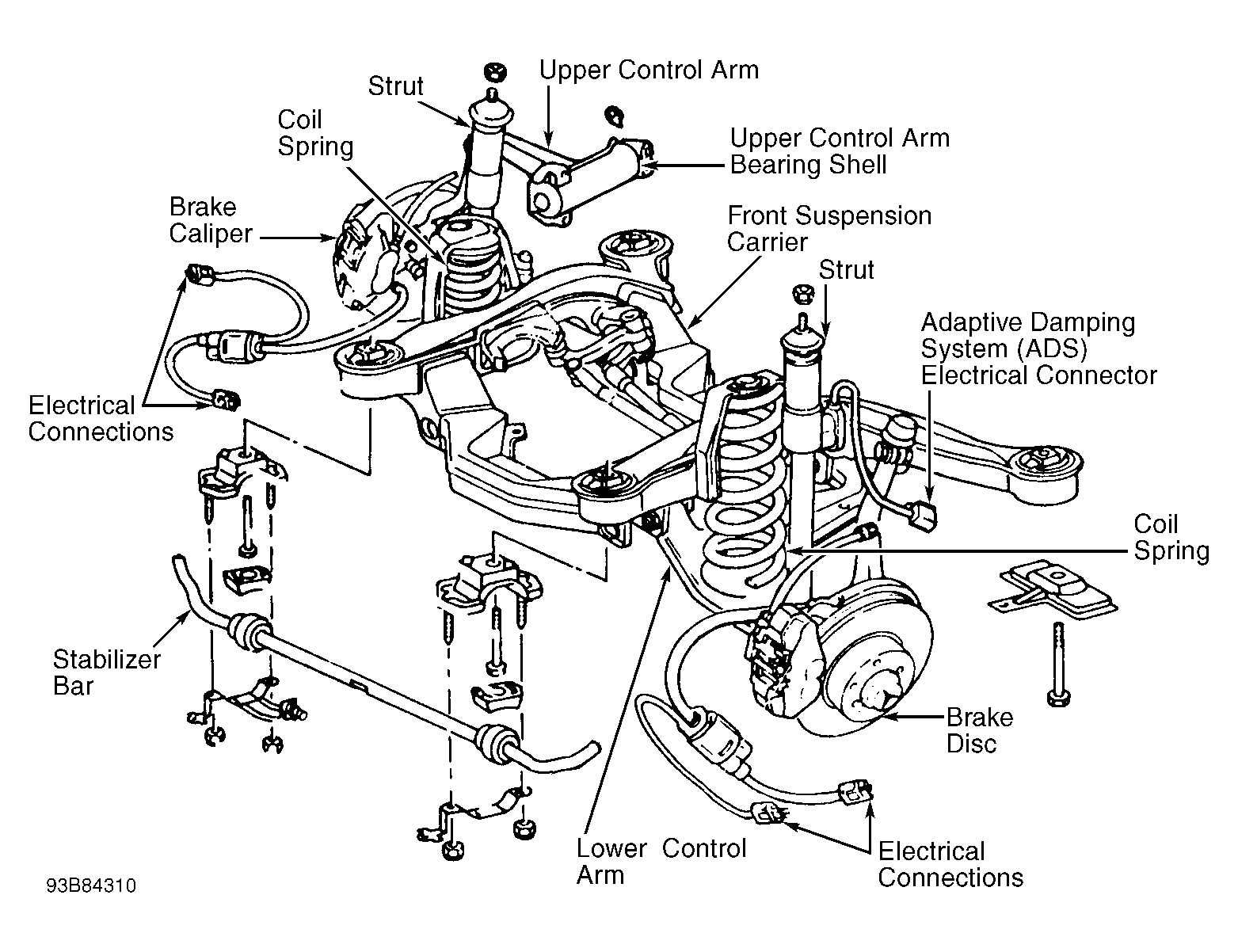

Fig 2: View Of Control Arm Suspension (S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

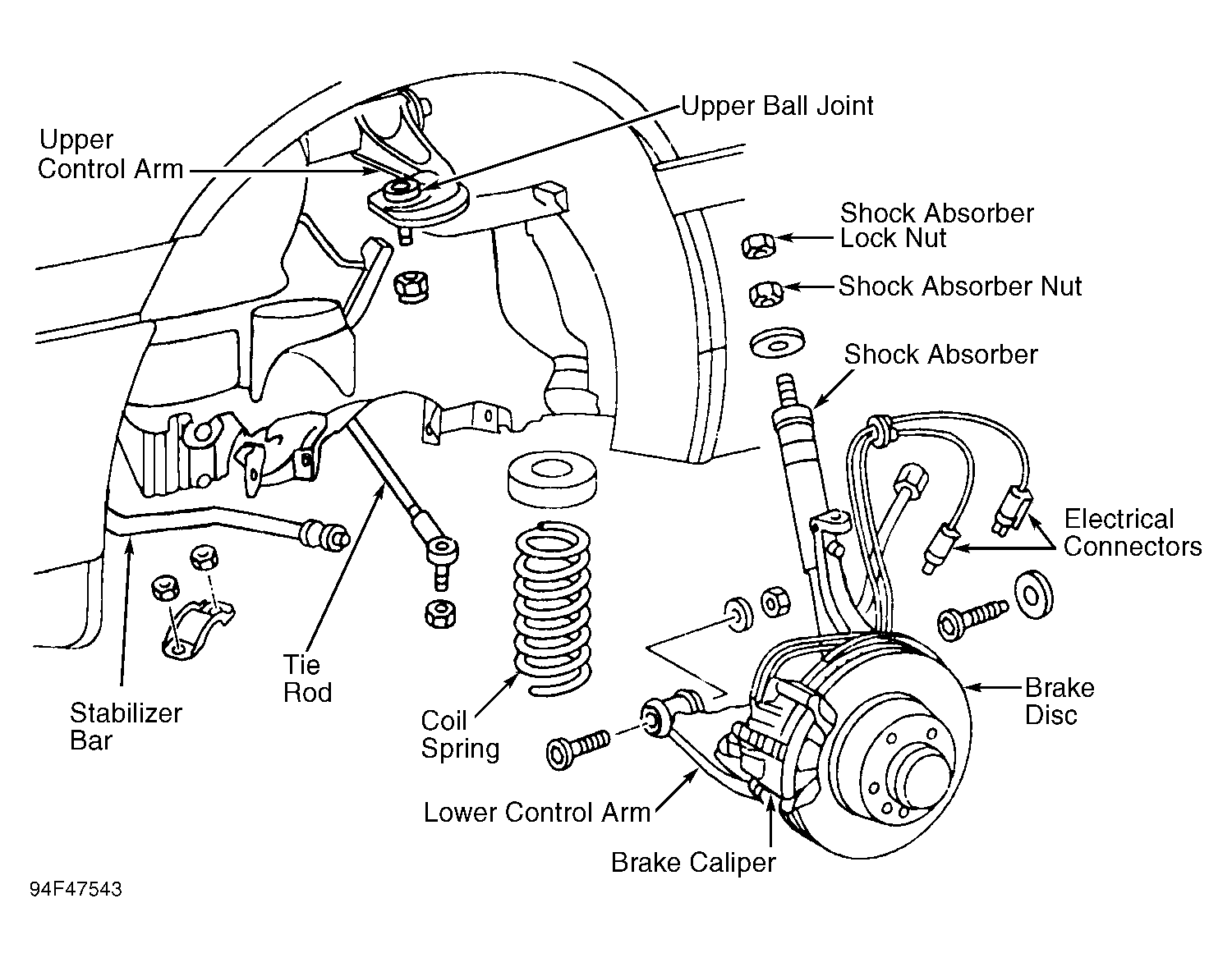

Fig 3: View Of Control Arm Suspension (E320, E420 & E430)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
