Location / task / design / function of R/P lock - GF27.60-P-5103G
TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210 without touch shift
TRANSMISSION 722.6 in MODELS 129, 140
| R/P lock, location | The R/P lock is located in the floor shift. | ||
| R/P lock, task | Prevents unintentional shifts to the selector lever positions "R" and "P" at driving speeds in excess of approx. 10 km/h. | ||

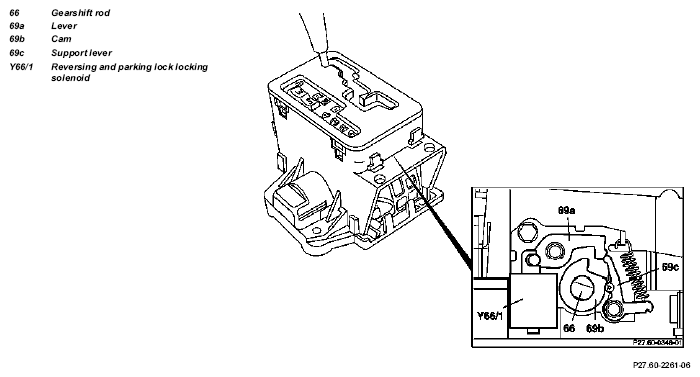

| R/P lock, design | The R/P lock consists of:
|
||
| R/P lock, function | GF27.60-P-5103-04G |
