R/P lock, function - GF27.60-P-5103-04GB

Transmission 722.6 in models 163, 170, 202, 208, 210 with touch shift

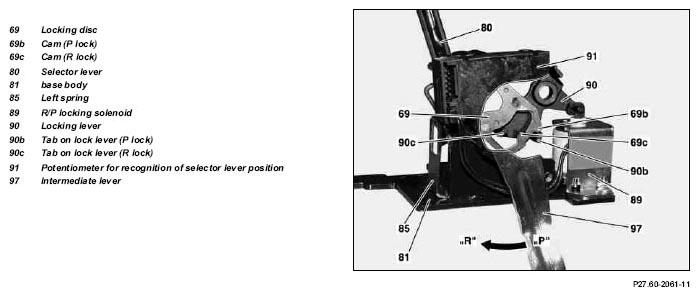

Fig 1: Identifying R/P Lock Components

Function of R lock

Above a speed of approx. 10 km/h the R/P locking solenoid (89) is actuated by the electronic selector lever module control module (N15/5). The R/P lock lever (90) is turned to the lock position (shift from "N" to "R").

The tab on the lock lever (R lock) (90c) locks (R-lock (69c) the locking disc (69). The selector lever (80) cannot be shifted into selector lever position R".

P-lock, function (locking position)

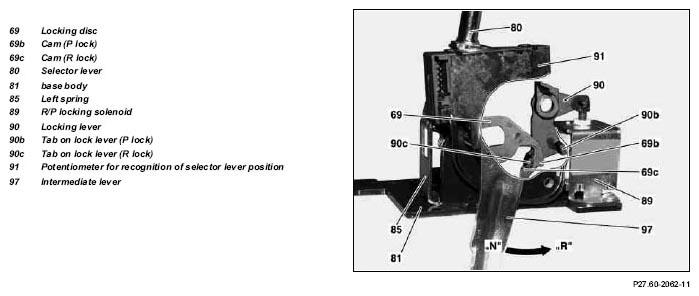

Fig 2: Identifying P-Lock Components

Function of P lock

The selector lever position "P" is locked whenever the R/P locking solenoid (89) is not actuated by the electronic selector lever module control module (N15/5). The prerequisites for this are as follows:

No voltage supply to the electronic selector lever module control module (N15/5)
Brake pedal not depressed.

Under these conditions the locking lever (90) is in the locking position (P-lock).

The web on the locking lever (P-lock) (90b) locks the locking disc (69). It is not possible to shift the selector lever (80) out of selector lever position "P".
