Shift detent, function - GF27.60-P-5101-04GB
Transmission 722.6 in models 163, 170, 202, 208, 210 with touch shift
Operation

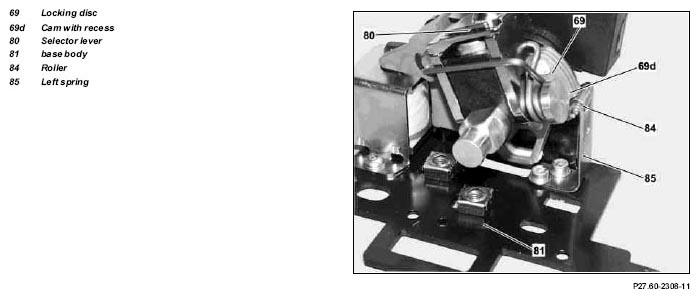

When the selector lever (80) is moved away from position "N" to position "D", the roller (84) locks in position engages in the recess (69d) in the locking disc via the cam.69 The selector lever (80) is locked to prevent longitudinal movement.
Now it can only be shifted out of selector lever position "D" against the force of the leaf spring (85).
It is still possible to move the selector lever (80) sideways (touch shift in the"+" and "-" direction).
