Fuel level sensor, location/task/design/function - GF47.10-P-3001M

MODEL 215, 220 with ENGINE 275.950

MODEL 230 with ENGINE 275.951

MODEL 216, 221 with ENGINE 275.953

MODEL 230 with ENGINE 275.954

MODEL 215, 220 with ENGINE 275.980

MODEL 230 with ENGINE 275.981

MODEL 216, 221 with ENGINE 275.982

MODEL 240 with ENGINE 285.950

MODEL 240 with ENGINE 285.980

Illustrated on model 230

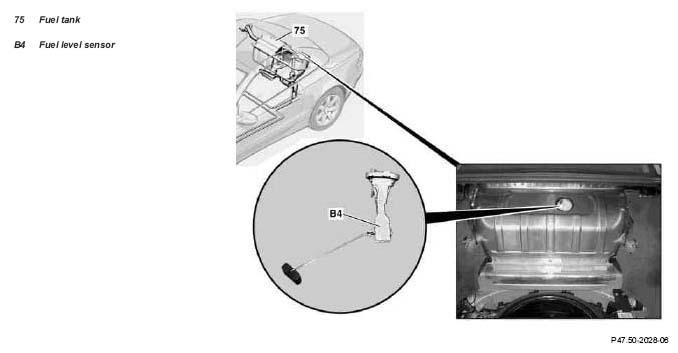

Fig 1: Identifying Fuel Tank And Fuel Level Sensor (Model 230)

	Fuel gage sensor, location	Model 215, 220, 230, 240: Installed into the fuel tank from above. Model 216, 221: One fuel level sensor is mounted in each fuel tank chamber.
	Fuel gage sensor task	The fuel level sensor determines the fuel level in the fuel tank.
	Fuel gage sensor design	Float-and-lever sensor with two wiper contacts (potentiometer) and a float.
	Fuel gage sensor function	Modification of resistance value in line with fuel level.
