Fuel pump, location/task/design/function - GF47.20-P-4003M: Notes
ENGINE 275.950 /980 in MODELS 215, 220
ENGINE 275.951 /954 /981 in MODEL 230
ENGINE 285.950 /980 in MODEL 240

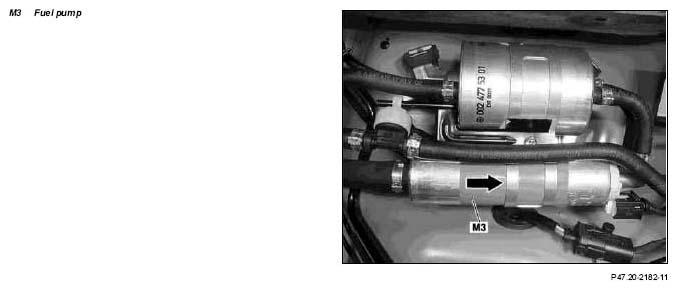

| Fuel pump position | Model 215, 220 with engine 275.950/951 | GF47.20-P-4003-01MM | |
| Model 215, 220 with engine 275.980 | GF47.20-P-4003-01MB | ||
| Model 230 | GF47.20-P-4003-01RM | ||
| Model 240 | GF47.20-P-4003-01MA | ||
| Fuel pump task | Making available an adequate quantity of fuel to the fuel system at the required pressure. | ||
| Fuel pump design | Helical spindle pump with a maximum delivery rate of about 245 or 330 l/h | ||
| Fuel pump function | GF47.20-P-4003-02M |
