Pressure sensor downstream of air cleaner, location/task/function - GF07.04-P-5041M: Notes

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230

ENGINE 275.953 in MODEL 216, 221

ENGINE 275.954 in MODEL 230

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230

ENGINE 275.982 in MODEL 216, 221

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

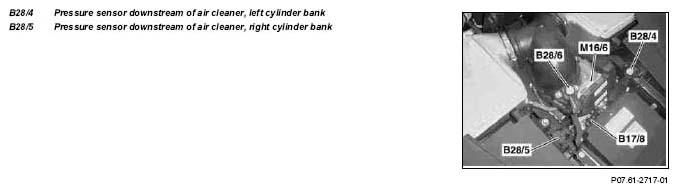

Fig 1: Identifying Pressure Sensor Downstream Of Air Cleaner

Pressure sensor downstream of air filter arrangement	On the air cleaner housing, between the air cleaner element and the compressor (clean air side)
Pressure sensor downstream of air filter task		GF07.04-P-5041-02M
Pressure sensor downstream of air cleaner, function		GF07.04-P-5041-01M
