Dynamic seat control module location/task - GF91.25-P-2105S: Notes

MODELS 215, 220 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat

Location

Dynamic seat control module

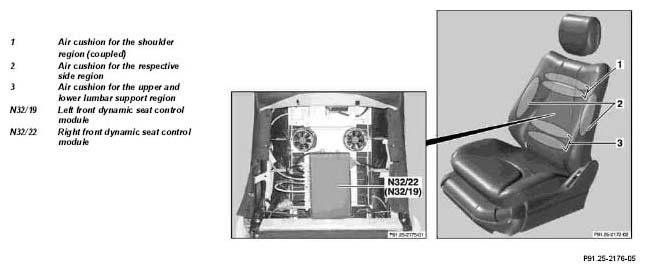

Fig 1: Identifying Dynamic Seat Control Module Components Location

	Dynamic seat control module location	The left front dynamic seat control module (N32/19) and right front dynamic seat control module (N32/22) is located in the respective seat backrests on the driver's/front passenger's side.
	Dynamic seat control module location		GF91.25-P-2105-01S
