Emergency Locking Retractor Sensor - Location/Design/Function - GF91.40-P-4002A: Notes
MODEL 215
Location of component

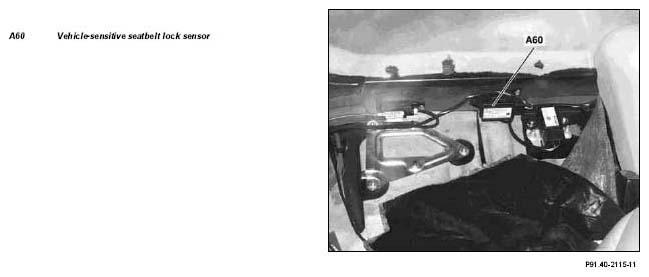

| Seat belt lock sensor, location | The vehicle-sensitive seat belt lock sensor (A60) is located on the crossmember under the left half of the rear bench. | ||
| Seat belt lock sensor, task | GF91.40-P-4002-01A | ||
| Seat belt lock, function | At an appropriate acceleration/deceleration or inclined position of the vehicle, a steel ball located in the sensor is accelerated and so interrupts a photoelectric barrier. This interruption is detected and evaluated by the sensor electronics. |
