Remove/install windshield - AR67.10-P-1000G: Notes

MODEL 170

9.10.97

Scope of work modified

	Remove
	Risk of injury  with trapped or crushed fingers, and in extreme cases with severed finger joints, when working on the windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Prepare glue cartridge		AR67.10-P-1000-07P
		Repair kit	*BR00.45-Z-1015-02A
2	Vario roof open
3	Remove inside rearvierw mirror		AR68.40-P-0001G
4	Remove both panels from outside of A-pillar		AR88.80-P-8500G
5	Remove molding on windshield.		AR67.10-P-1200G
6	Remove both wiper arms		AR82.30-P-6100G
7	Remove air inlet		AR83.25-P-1401G
	Risk of injury  from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A

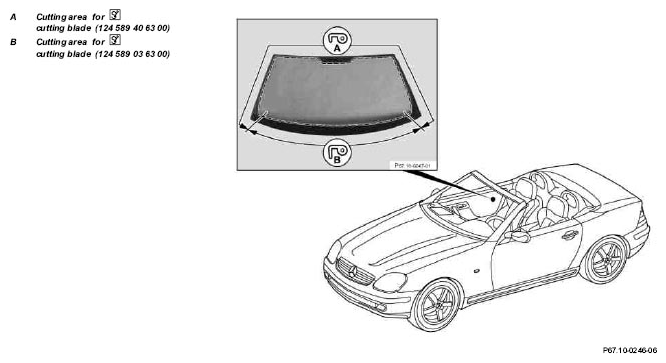

8	Remove windshield with cutting blade		AR67.10-P-1000-01G
			Figure
			Figure
			*WH58.30-Z-1003-20A
9	Remove windshield from body with suction cups		*WE58.40-Z-1029-11A
	Install
10	Preparing body flange for installation of window		AR67.10-P-1501-01P
			Fig 4
			*WH58.30-Z-1003-20A
11	Replace rubber window spacers	Do not remove protective foil	AR67.10-P-1000-02G
12	Prepare window for installation		AR67.10-P-1000-03P
13	Align windshield in body opening		AR67.10-P-1000-04G
		Observe gap	*BE67.10-P-1001-01A
14	Remove backing foil from windshield rubber spacers.
15	Applying glue	Height of glue bead approx. 13 mm	AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
16	Fit windshield	Curing time is approx. 1 hour, calculated from the time the windshield is installed.	AR67.10-P-1503-01K
			*WE58.40-Z-1029-11A
17	Install windshield molding		AR67.10-P-1200G
18	Install air inlet		AR83.25-P-1401G
19	Install both wiper arms		AR82.30-P-6100G
20	Install both panels on outside of A-pillar		AR88.80-P-8500G
21	Install inside rearview mirror		AR68.40-P-0001G

Number	Designation			Model 170
BE67.10-P-1001-01A	Distance between window upper edge and front edge or roof.	Dimension "A"	mm	12
		Fig. see		AR67.10-P-1000-04G

Number	Designation
WH58.30-Z-1002-20A	Electric cartridge gun
WH58.30-Z-1003-20A	Multicutter

WE58.40-Z-1029-11A

Cup suction tool for window removal and installation

Number	Designation	Order number
BR00.45-Z-1015-02A	Repair kit	A 220 670 00 93
