Fuel Injection System Test (Steps 10.0 & 11.0)

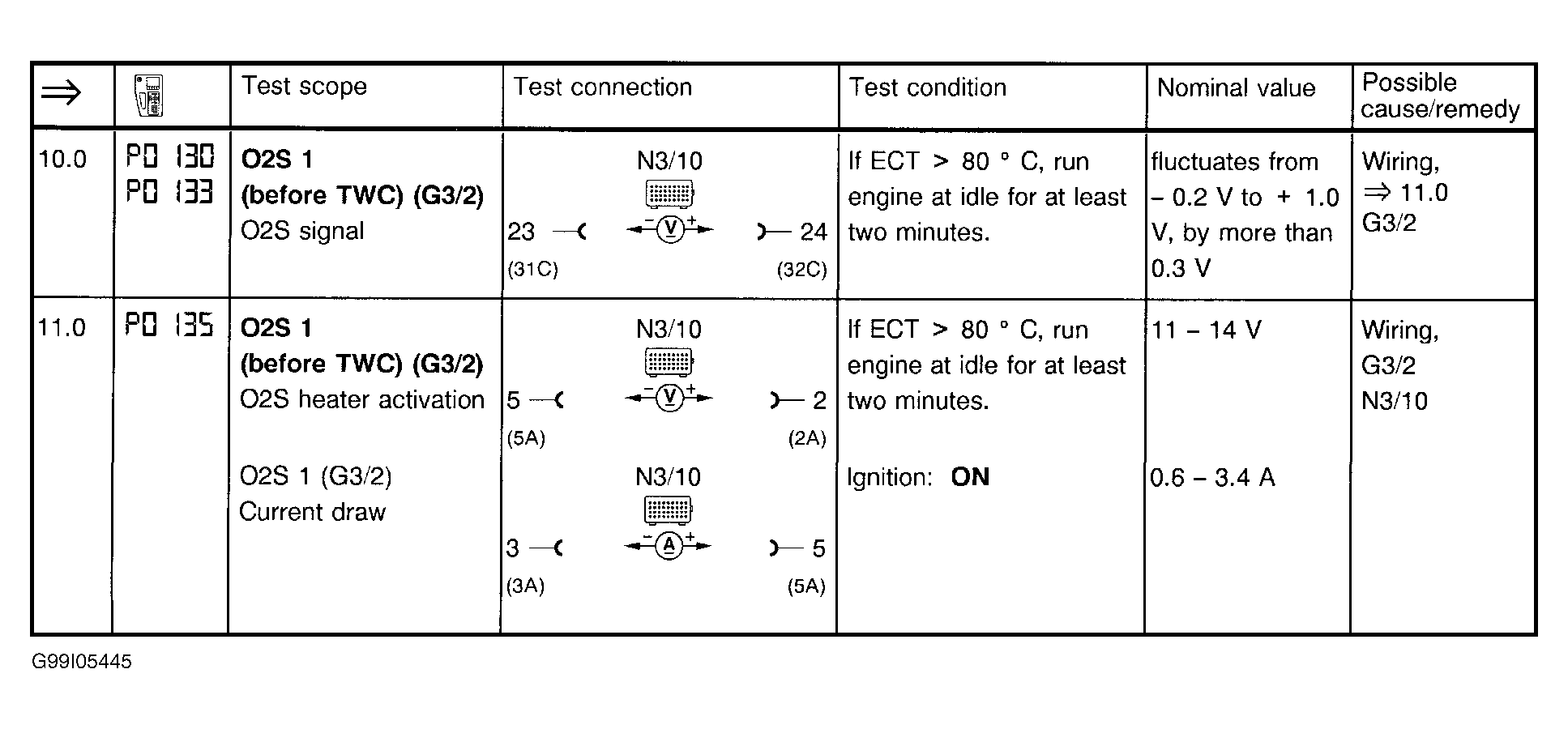

Fig 1: Fuel Injection System Test (Steps 10.0 & 11.0)
G99I05445Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
