Transmitter Key Operating Intermittently (80.57/12)

Publication date: 2001-08-30
Reference number: 80.57/12

TRANSMITTER KEY OPERATING INTERMITTENTLY

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-B-80.57/12, Date of Issue: August 30, 2001

MERCEDES-BENZ:	Model 203
GROUP:	80 - Central Locking, Infrared Locking

SUBJECT

Transmitter Key Operating Intermittently

SERVICE INFORMATION

If you encounter instances on Model 203 of vehicles which cannot be locked / unlocked using the remote control on the SmartKey, or if the key cannot be turned in the Electronic Ignition Switch (N73), please replace only the transmitter key. Replacement of the Electronic Ignition Switch or the Electronic Steering Lock (N26/5) is not required unless replacement of transmitter key did not resolve issue. Costs for unnecessary component replacement as indicated will not be covered by Warranty.

Please use the NEW part numbers when ordering. The key can be identified by the first three digits of the 7- digit number on the SmartKey (refer to picture).

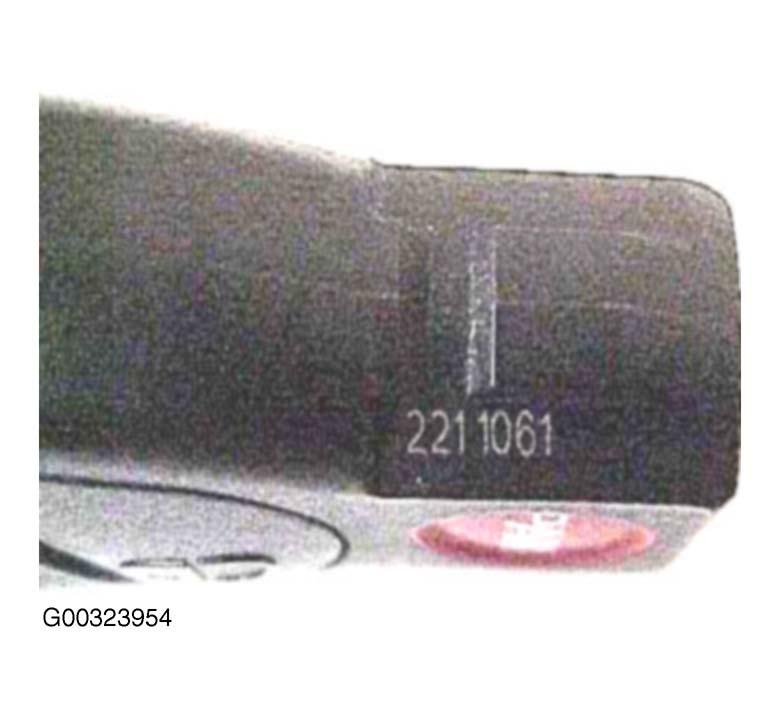

Fig 1: Transmitter Key Identification

PARTS INFORMATION

Old Part Number	New Part Number	New Variant
203 766 10 06 9999	203 766 41 06 9999	221
