Command valve, function - GF27.60-P-5138-04G

Transmission 722.6

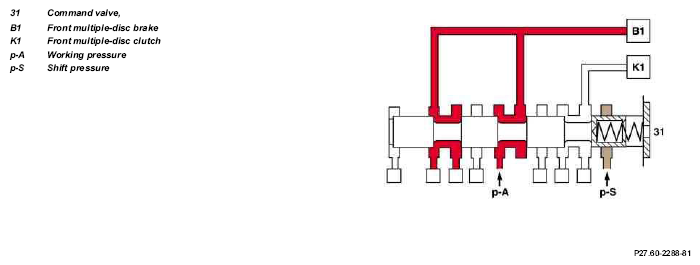

1-2/4-5 command valve shown

Stationary phase (B1 engaged, K1 disengaged)

Fig 1: Identifying Command Valve Function Diagram - Stationary Phase (B1 Engaged, K1 Disengaged)

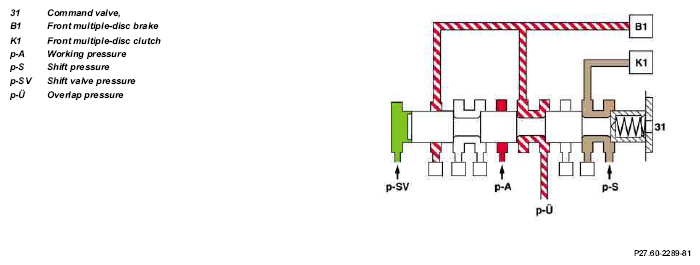

1-2/4-5 command valve shown

Shift phase (B1 disengaging, K1 engaging)

Fig 2: Identifying Command Valve Function Diagram - Shift Phase (B1 Disengaging, K1 Engaging)

Operation

When the end face is unpressurized (stationary phase), the working pressure is directed to the actuated shift element.

If the end face of the command valve (31) is subjected to shift valve pressure (p-SV) (shift phase), then the shift pressure (p-S) is switched to the engaging element and the overlap pressure (p-U) is switched to the disengaging element.
