Me-SFI Control Module Connector Identification

NOTE: When connecting test equipment, disconnect ME-SFI control module connector "D" first. When reconnecting connectors, connect connector "D" last. See Fig 1 .

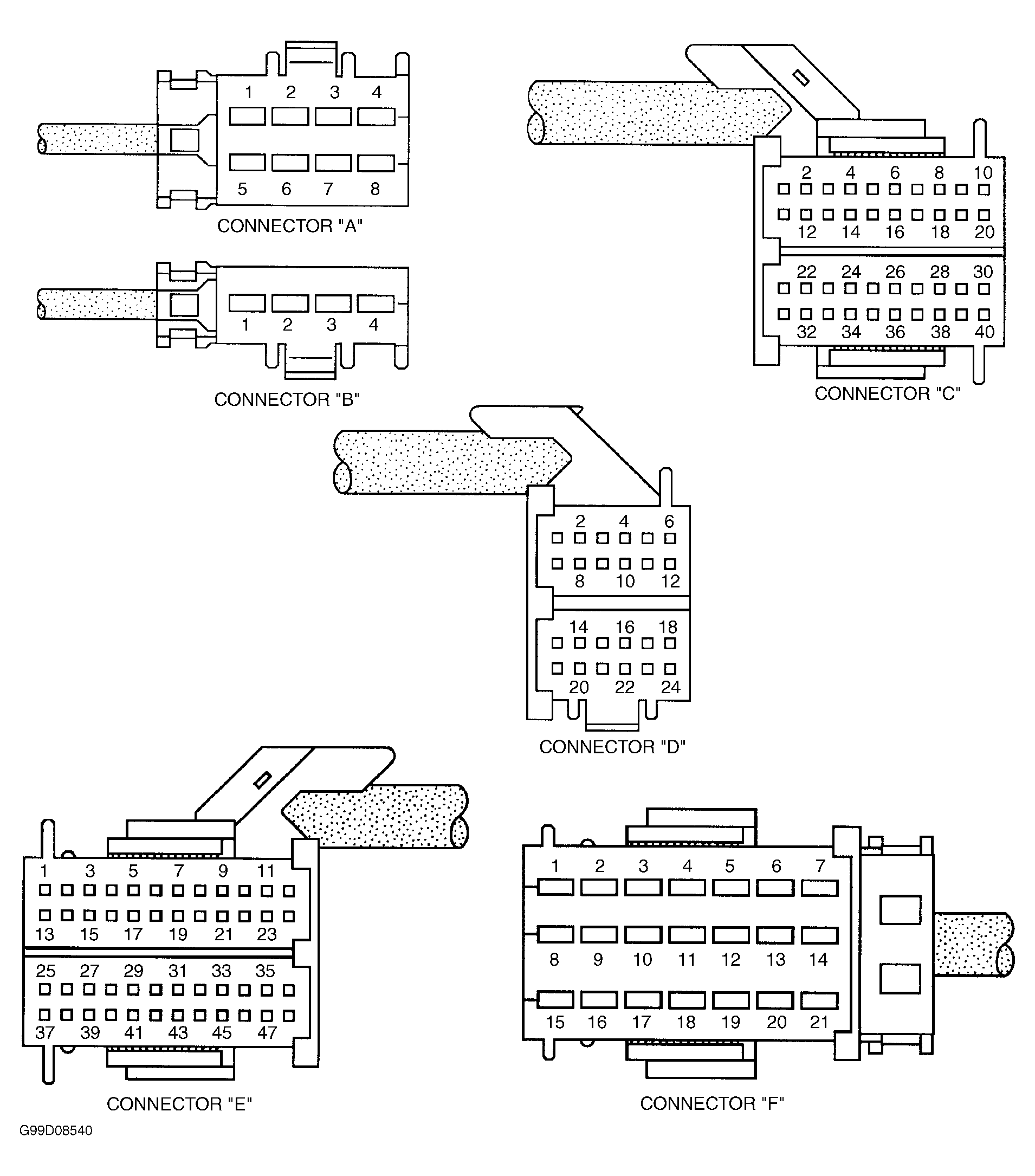

Fig 1: ME-SFI Control Module Connector Terminal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
