Fuel Pump Tests

NOTE: Far left column in following graphics are step numbers.

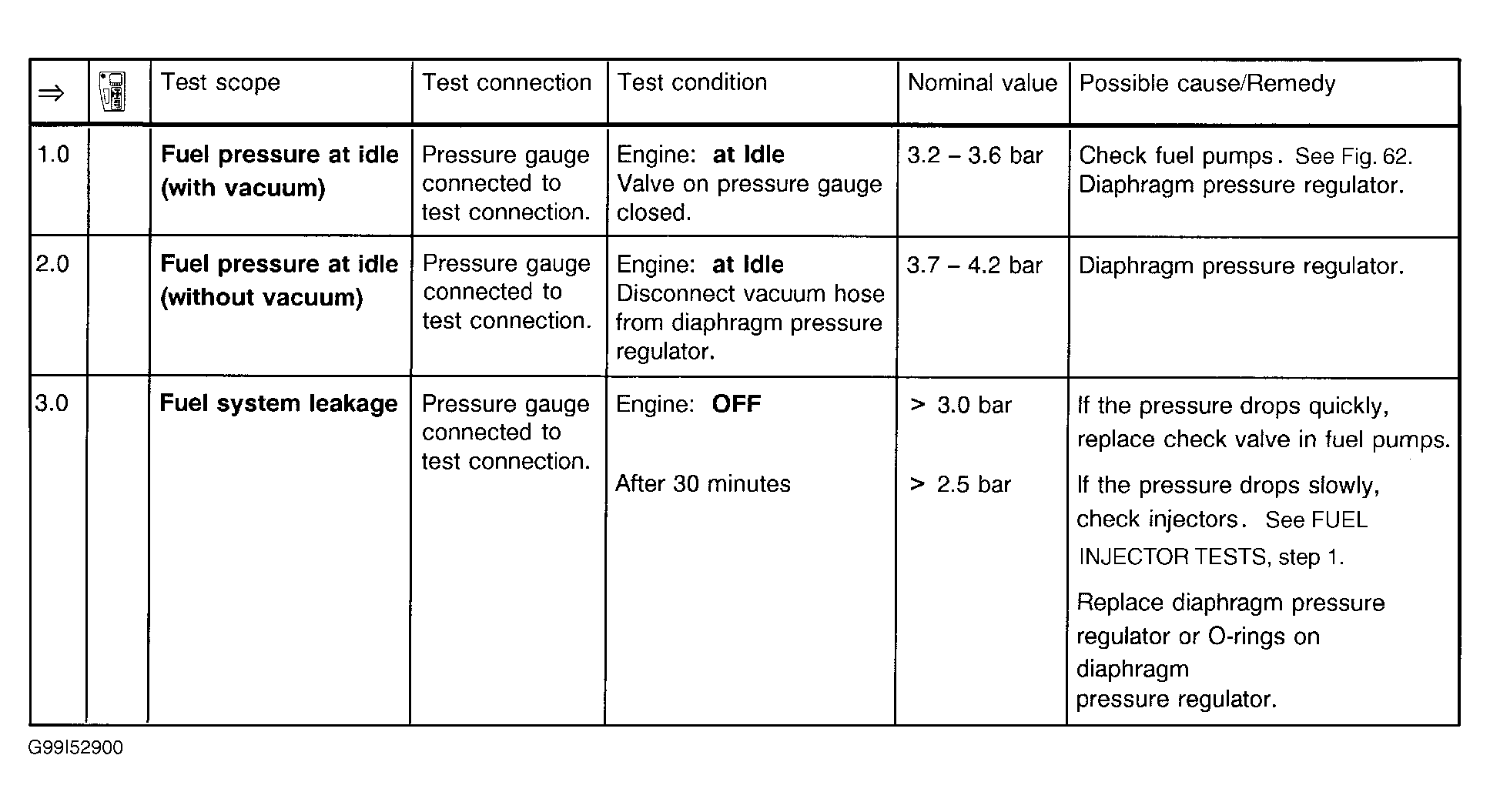

Fig 1: Fuel Pressure & Leakage Tests
G99I52900Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Fuel Pump Tests
G99C05621Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
