Front seat adjustment switch group, location/design/function - GF91.29-P-2100LK: Notes
MODEL 170 with CODE (221b) Electrically adjustable driver and passenger seats

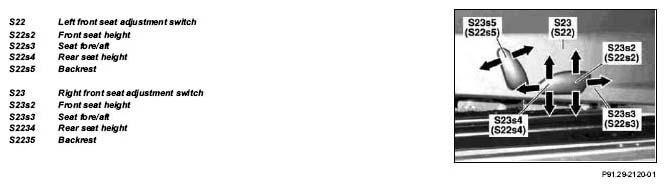

Illustrated on right seat
The seat adjustment switches (S22, S23) are located on the corresponding seat subframe on the door side.
| Front seat adjustment switch group, purpose | The seat adjustment switches (S22, S23) consist of four polarity-reversing switches for the individual adjustment functions. The wiring to the motors and to the power supply is soldered firmly to the switch. | ||
| Front seat adjustment switch group, function | GF91.29-P-2100-02LK |
